Front Differential Components

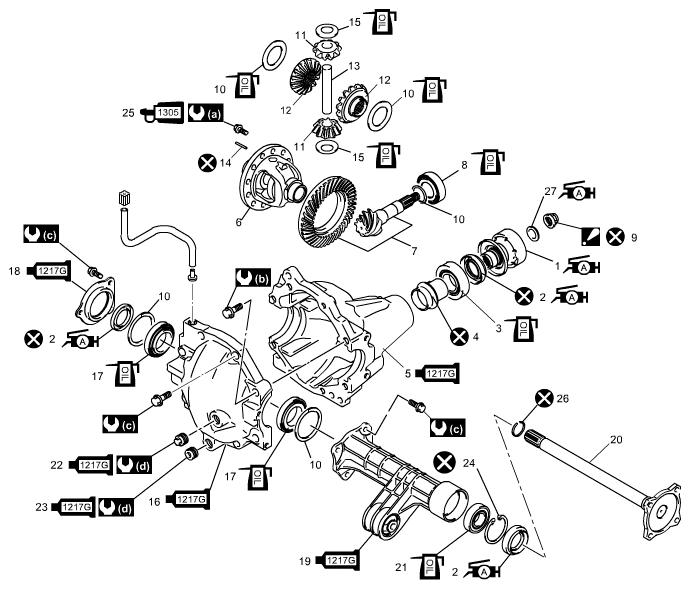

Fig 1: Disassembled View Of Front Differential (1 Of 2)
G08894017Courtesy of SUZUKI OF AMERICA CORP.

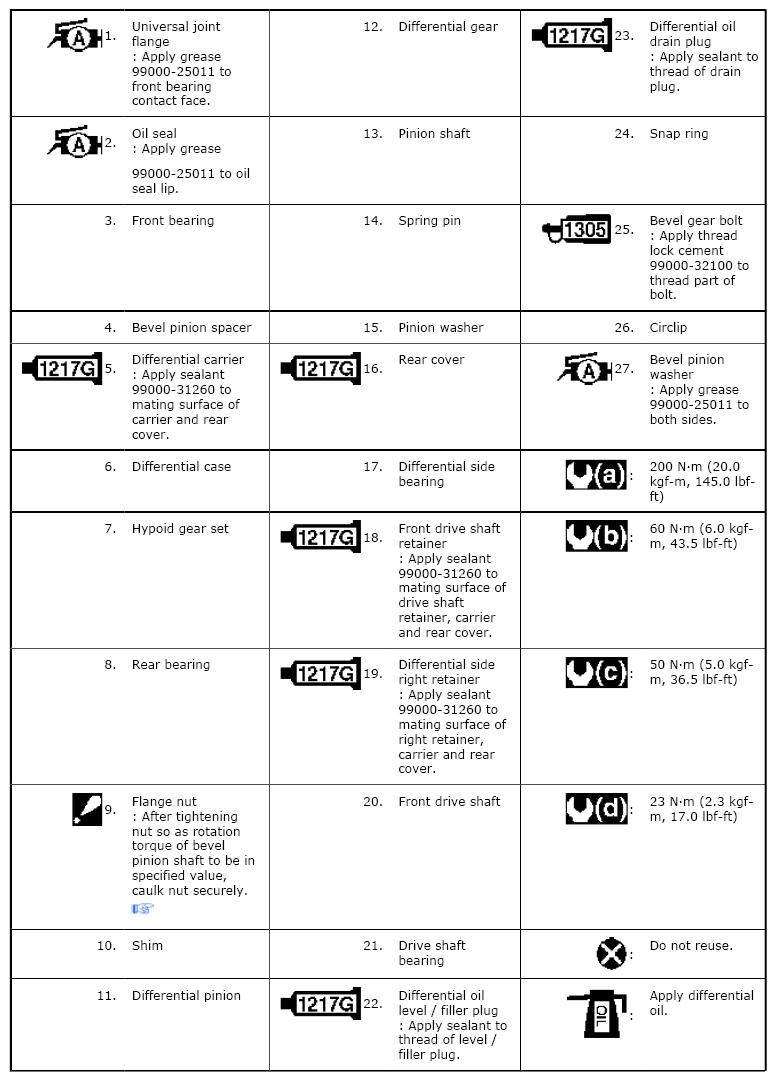

Fig 2: Disassembled View Of Front Differential (2 Of 2)
G08894018Courtesy of SUZUKI OF AMERICA CORP.
