DTC C1071: ABS (ESP®) Control Module Internal Defect: Wiring Diagram

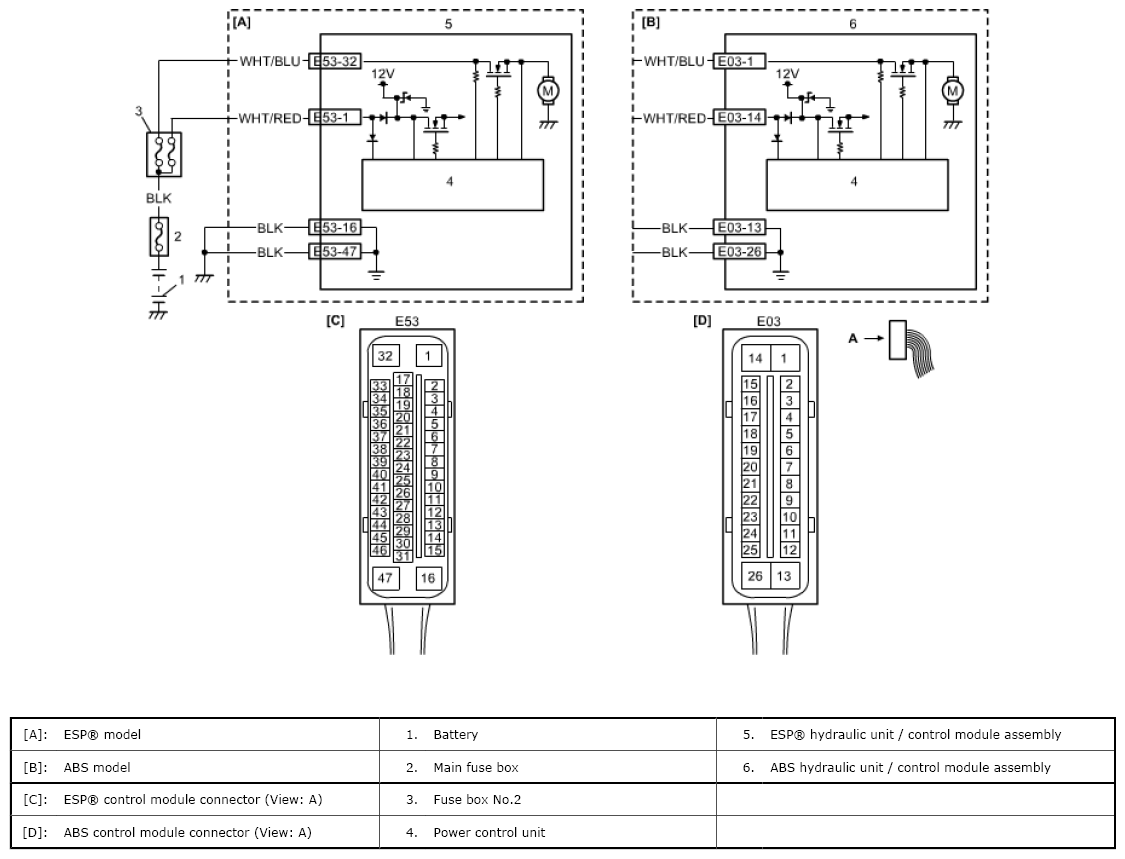

Fig 1: ABS Control Module - Wiring Diagram
G08894405Courtesy of SUZUKI OF AMERICA CORP.
