DTC C1057: ABS (ESP®) Control Module Power Supply Circuit Failure: Wiring Diagram

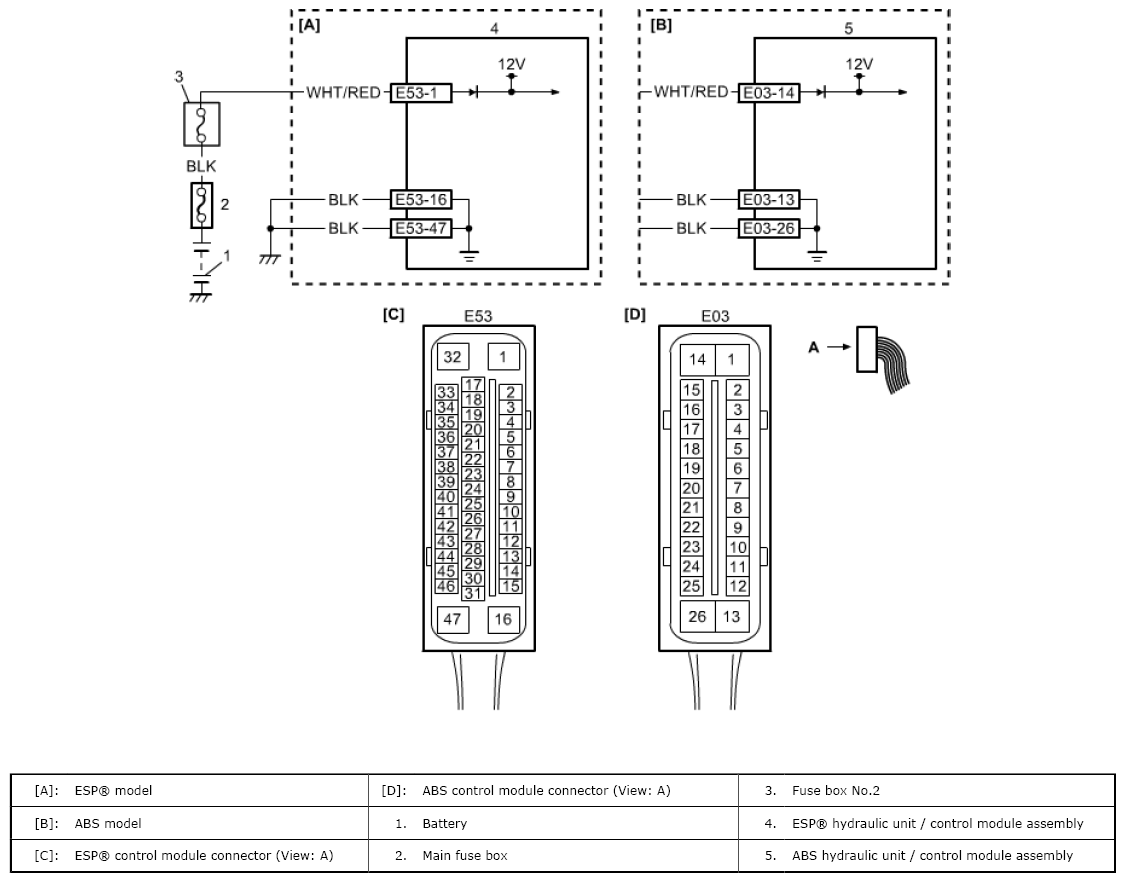

Fig 1: ABS Control Module Power Supply Circuit - Wiring Diagram
G08894402Courtesy of SUZUKI OF AMERICA CORP.
