Rear Door Window Regulator Removal and Installation: Removal

  1. Remove door glass referring to REAR DOOR GLASS REMOVAL AND INSTALLATION .
  2. Disconnect power window motor lead wire at coupler and loosen clamp.
  3. Loosen regulator mounting screws (1), and then remove rear window regulator (2).

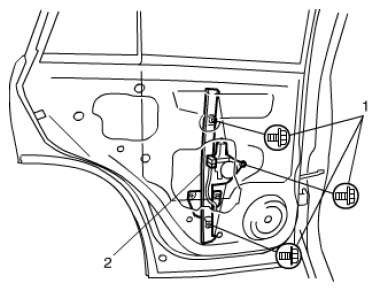

    Fig 1: Loosening Regulator Mounting Screws And Rear Window Regulator
    G08899598Courtesy of SUZUKI OF AMERICA CORP.
