Rear Door Glass Removal and Installation: Installation

Reverse removal procedure noting the following instructions.

• If there is deformity for glass run, replace it with a new one.

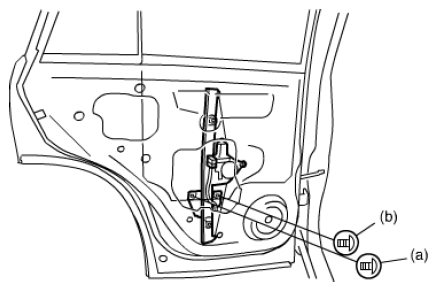

• Tighten rear door window mounting screw (a) first and then (b).
  Fig 1: Identifying Rear Door Window Mounting Screw

  Courtesy of SUZUKI OF AMERICA CORP.

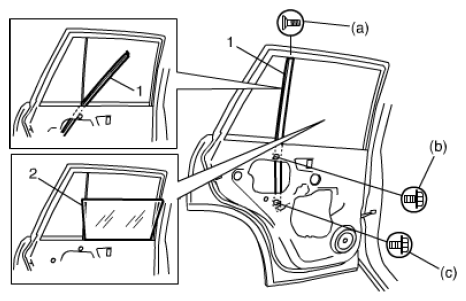

• Tighten door sash mounting screw and bolts in order of (a), (b) and (c).
  Fig 2: Identifying Door Sash Mounting Screw And Bolts

  Courtesy of SUZUKI OF AMERICA CORP.

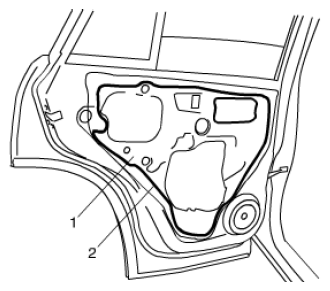

• Secure door sealing cover (1) with adhesive (2).
  Fig 3: Securing Door Sealing Cover With Adhesive

  Courtesy of SUZUKI OF AMERICA CORP.

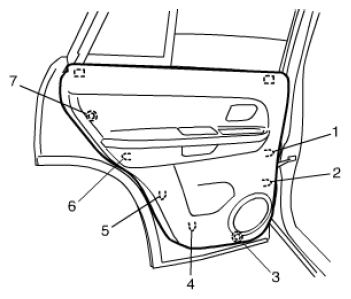

• Install rear door trim.

  Rear door trim attaching order

  (1) → (2) → (3) → (4) → (5) → (6) → (7)

  Fig 4: Installing Rear Door Trim

  Courtesy of SUZUKI OF AMERICA CORP.
