Power Door Mirror Switch Inspection (If Equipped)

  1. Remove driver side door trim referring to step  1) to  3) of Front Door Glass Removal and Installation .
  2. Remove power window main switch from door trim.
  3. Check for continuity between terminals at each switch position.

    If check result is not as specified, replace door mirror switch.

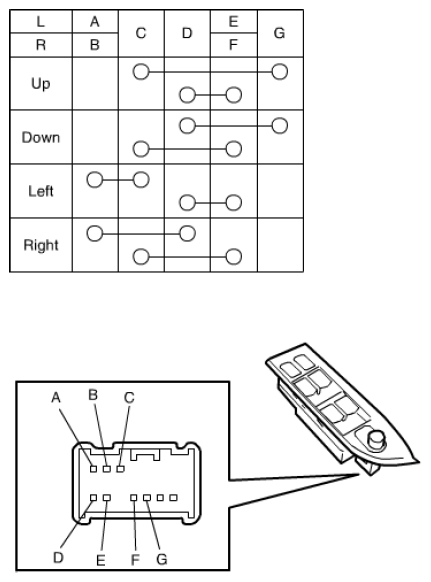

    Fig 1: Identifying Power Door Mirror Switch Terminals
    G08899612Courtesy of SUZUKI OF AMERICA CORP.
