Front Door Window Regulator Removal and Installation: Installation

Reference: FRONT DOOR WINDOW REGULATOR INSPECTION

Reverse removal procedure noting the following instruction.

• Apply grease to sliding portions of window regulator.

  : Grease 99000-25010 (SUZUKI Super Grease A)

• Tighten front door window regulator attaching screws.

  Front door window regulator screw tightening order

  (a) → (b) → (c)

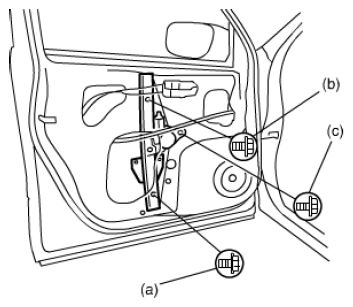

  Fig 1: Identifying Front Door Window Regulator Screws

  Courtesy of SUZUKI OF AMERICA CORP.
