Front Door Glass Removal and Installation: Removal

Remove door mirror trim (1) and door trim screw cover (2).
Remove door trim screw (3).
Remove door trim (4) as shown.
And disconnect power window switch lead wire and door illumination light lead wire at coupler.

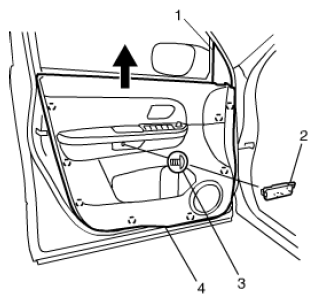

Fig 1: Removing Door Trim
Courtesy of SUZUKI OF AMERICA CORP.
Remove door sealing cover (1).

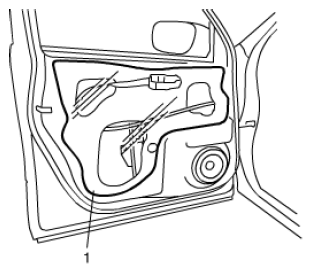

Fig 2: Identifying Door Sealing Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove door glass mounting screws (1).
Remove door glass (2) while tilting it as shown.

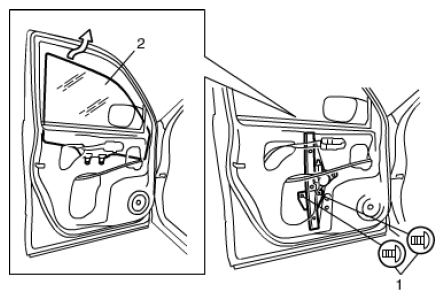

Fig 3: Identifying Door Glass Mounting Screws And Door Glass
Courtesy of SUZUKI OF AMERICA CORP.
