Front Suspension Frame

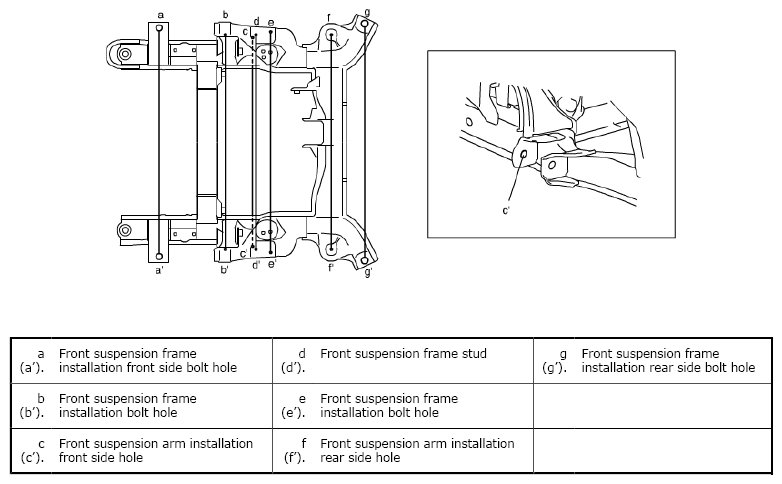

HOLE TO HOLE DISTANCE
| a-a': 830 mm (32.68 in.) | d-d': 790 mm (31.10 in.) | g-g': 860 mm (33.86 in.) |
| b-b': 840 mm (33.07 in.) | e-e': 794 mm (31.26 in.) | |
| c-c': 780 mm (30.71 in.) | f-f': 780 mm (30.71 in.) |
HOLE TO HOLE DISTANCE
| a-d: 349 mm (13.74 in.) | d-e: 51 mm (2.01 in.) |
| b-d: 110 mm (4.33 in.) | d-f: 275 mm (10.83 in.) |
| c-d: 80 mm (3.15 in.) | d-g: 395 mm (15.55 in.) |

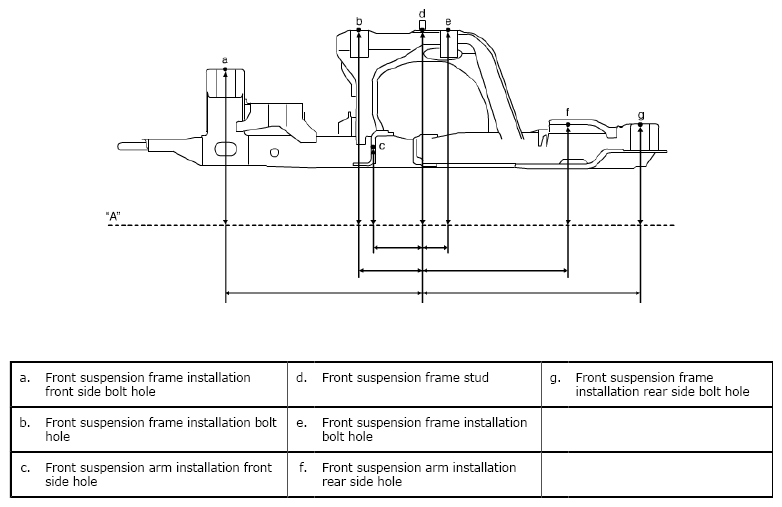

PROJECTION DIMENSION FROM STANDARD LINE "A"
| a: 193 mm (7.60 in.) | d: 263 mm (10.35 in.) | g: 95 mm (3.74 in.) |
| b: 263 mm (10.35 in.) | e: 263 mm (10.35 in.) | |
| c: 49 mm (1.93 in.) | f: 96 mm (3.78 in.) |
