Intake Manifold Removal and Installation: Installation

Reverse removal procedure for installation noting the following.

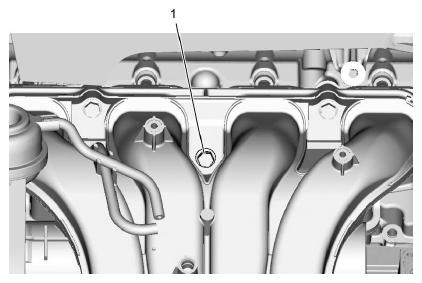

• Use new intake manifold bolt for position (1) in figure, because it is not reusable.
  Fig 1: Identifying Intake Manifold Bolt

  Courtesy of SUZUKI OF AMERICA CORP.
• Use new gaskets
• Refill cooling system. Refer to COOLING SYSTEM REFILLING .
• Check for coolant leaks. Refer to ENGINE COOLING SYSTEM INSPECTION .
