Cabin Air Filter / Purifier: Service and Repair

HVAC Air Filter Removal and Installation

Removal
1) Disconnect negative (-) cable at battery.
2) Remove glove box.

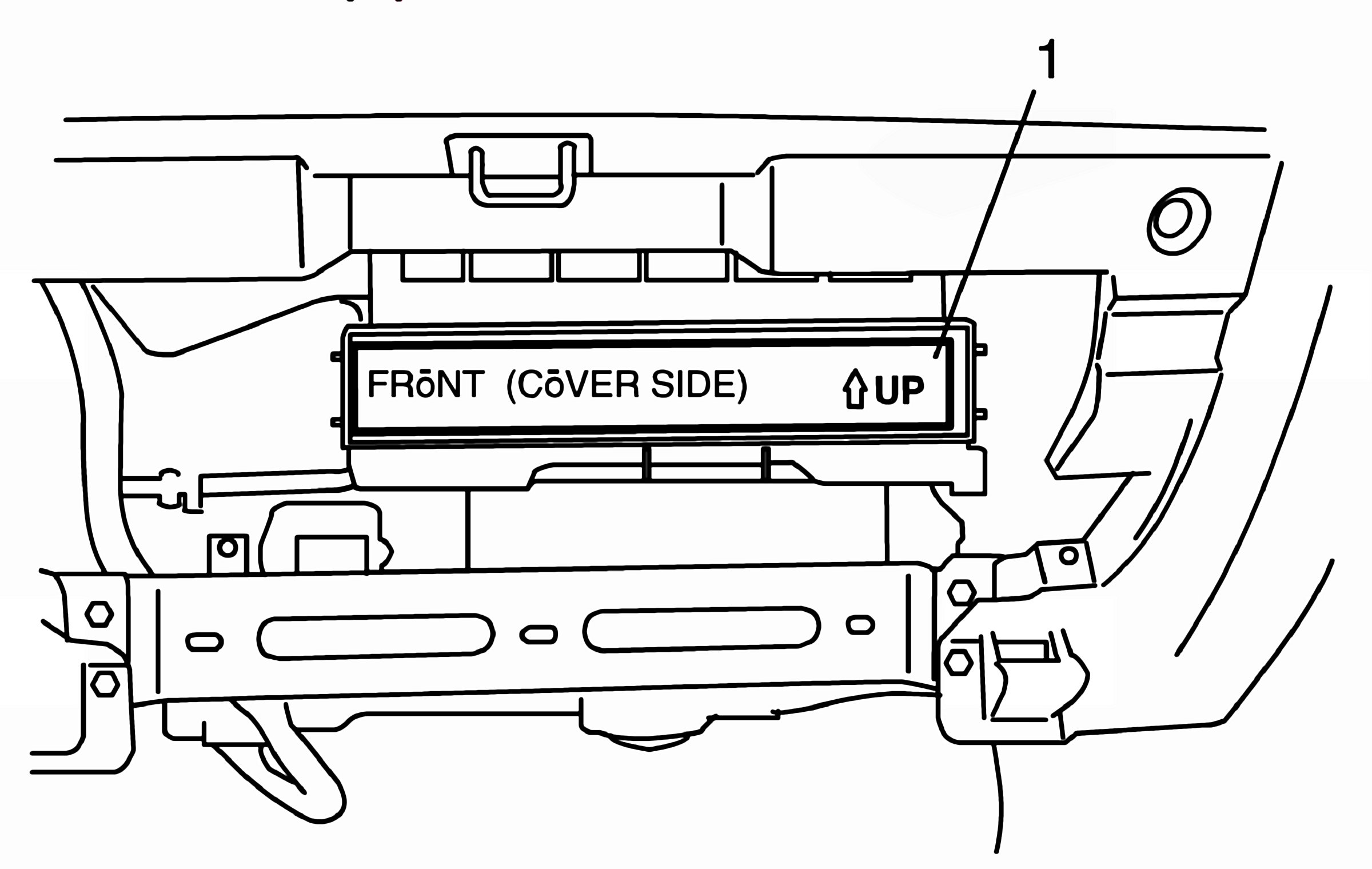

3) Remove filter cover (1).

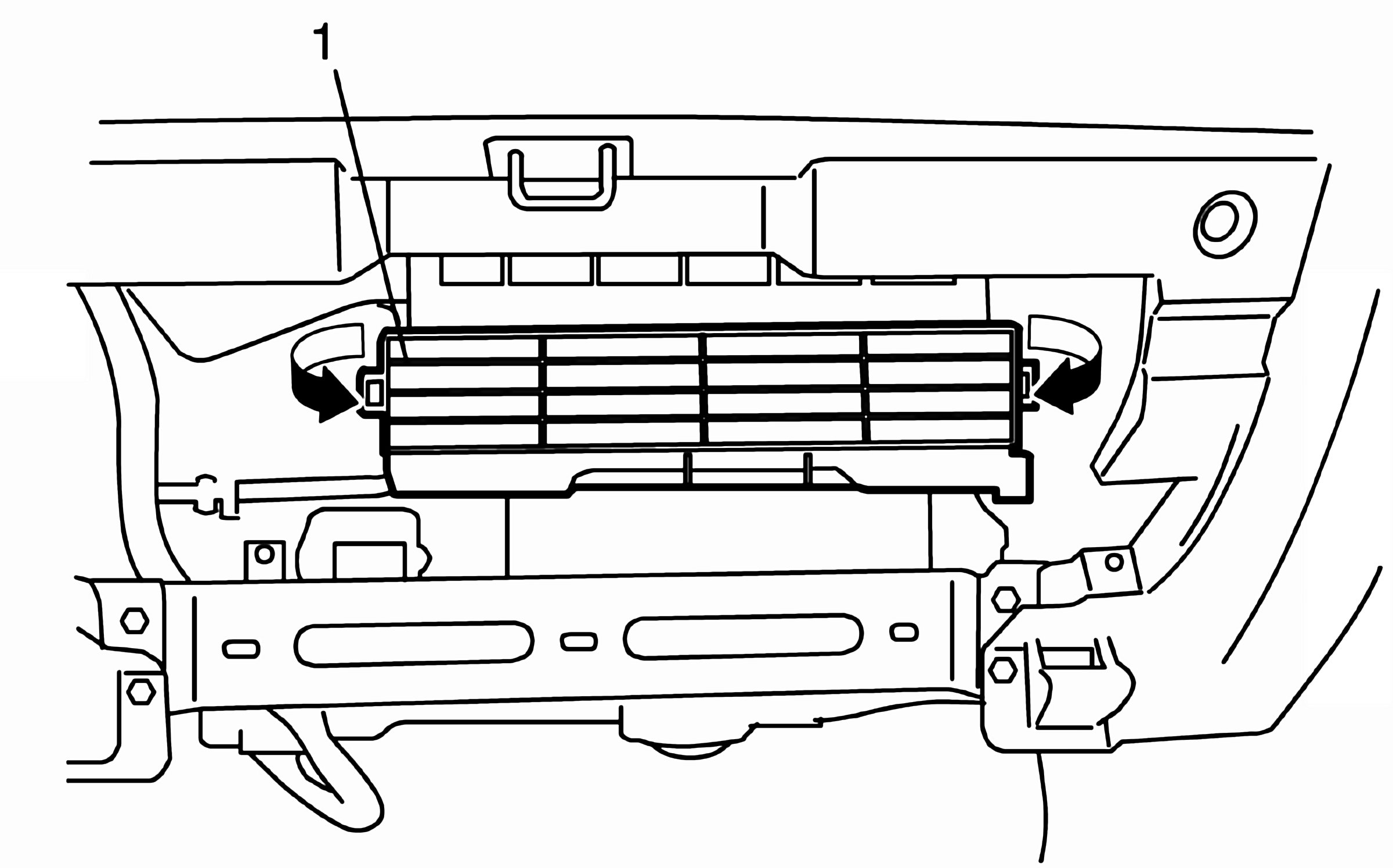

4) Pull out filter element (1).

Installation
Reverse removal procedure for installation noting the following:

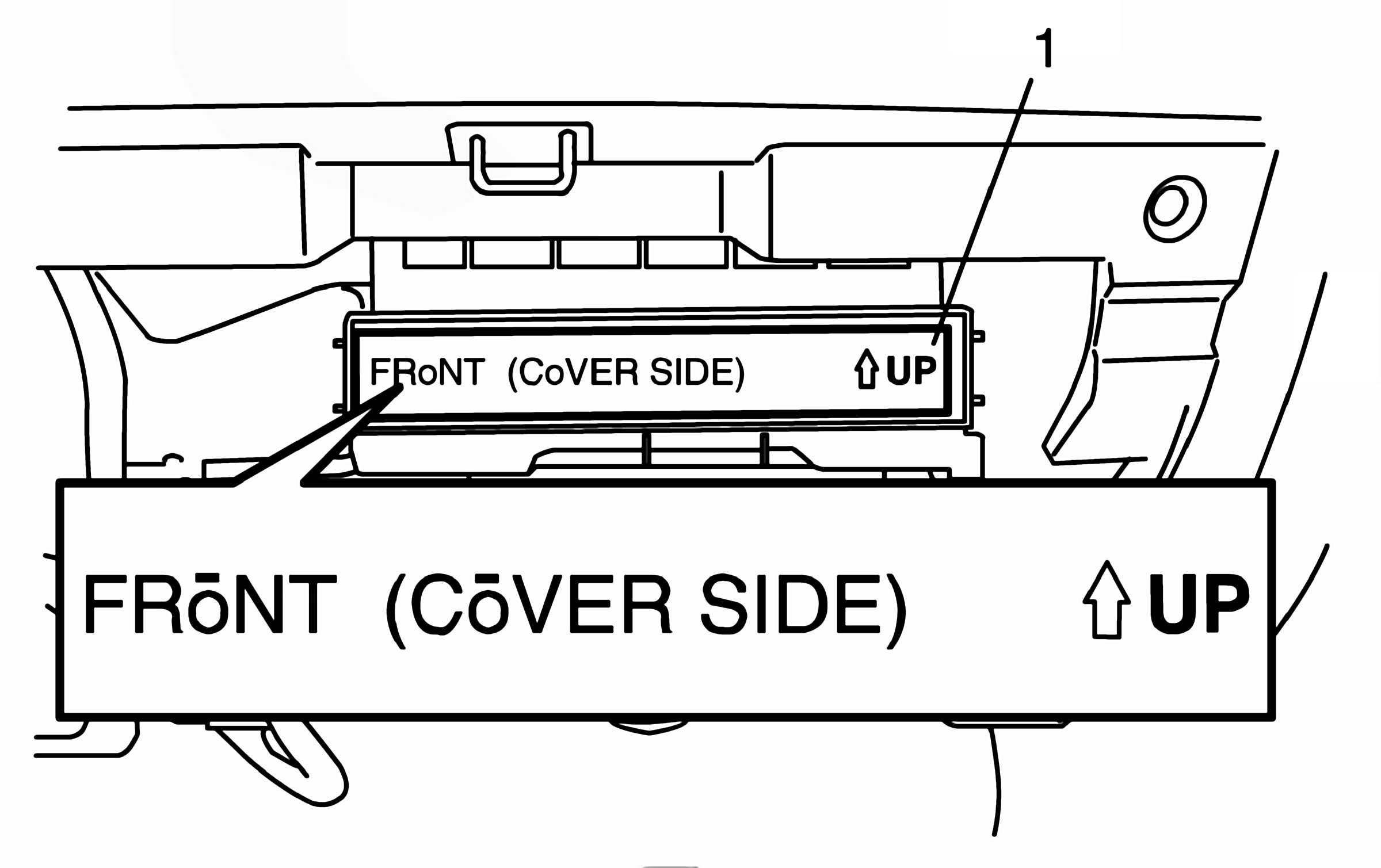

- Install filter (1) into blower unit by paying attention to direction of arrow on filter.
- Enable air bag system after installation of filter.
