Manual Transaxle Unit Components

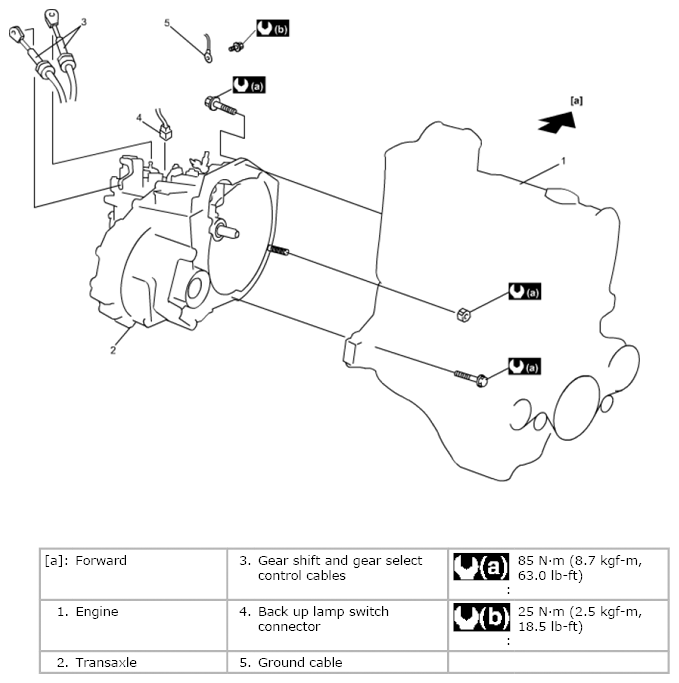

Fig 1: Identifying Manual Transaxle Unit Components
Courtesy of SUZUKI OF AMERICA CORP.
