Manual Transaxle Assembly Components

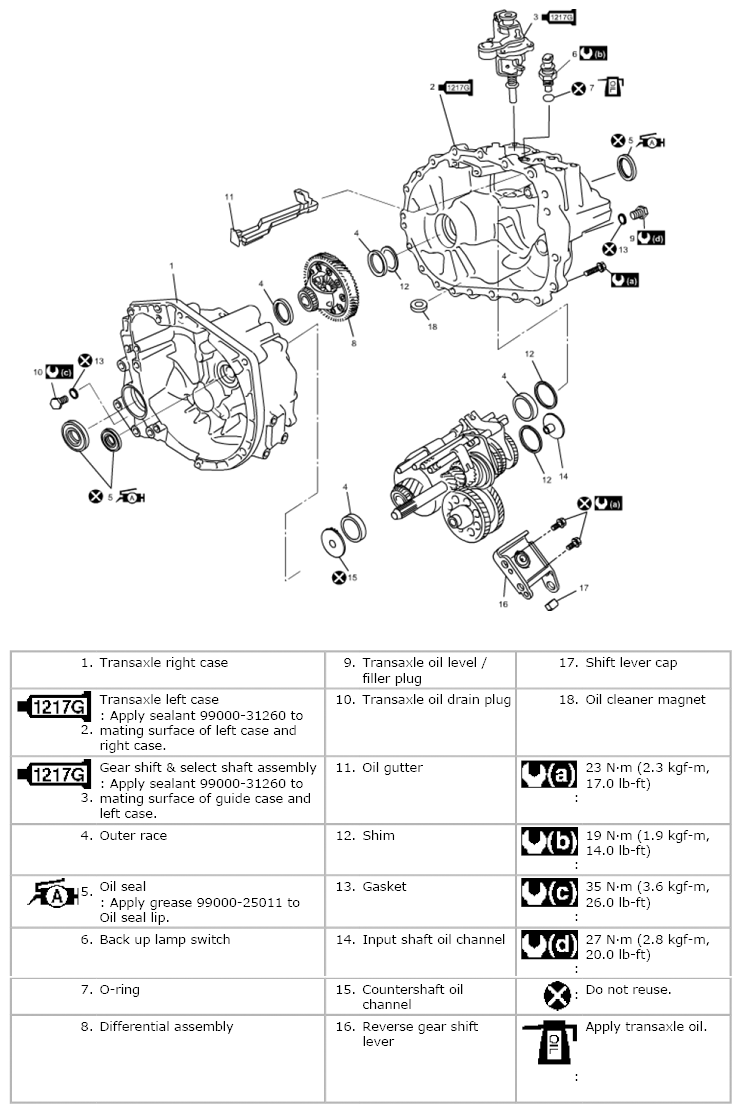

Fig 1: Identifying Manual Transaxle Assembly Components
G06868617Courtesy of SUZUKI OF AMERICA CORP.
