Left Case Disassembly and Reassembly: Disassembly

Removal oil gutter (1), if necessary.

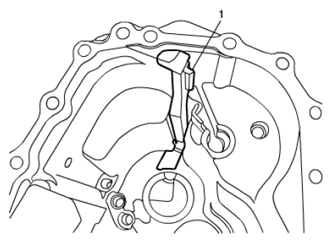

Fig 1: Identifying Oil Gutter
Courtesy of SUZUKI OF AMERICA CORP.
Remove oil seal using flat end rod or the like.
Remove differential side bearing outer race (1) and shim using special tools.
Special Tool
1. 09942-15511
2. 09944-96011

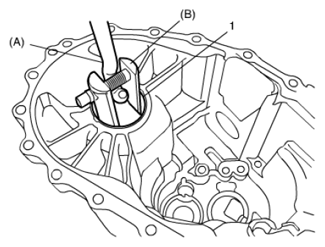

  Fig 2: Identifying Special Tools For Differential Side Bearing Outer Race
  Courtesy of SUZUKI OF AMERICA CORP.
Remove countershaft right bearing outer race (1) and shim using special tools.
Special Tool
1. 09942-15511
2. 09944-96011

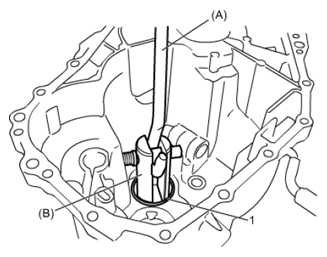

  Fig 3: Identifying Special Tools For Countershaft Right Bearing Outer Race
  Courtesy of SUZUKI OF AMERICA CORP.
