Gear Shift Control Lever and Cable Removal and Installation: Removal
- Remove console box. See CONSOLE BOX COMPONENTS
.

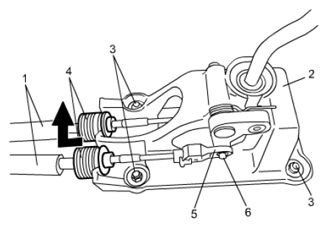

- Disconnect cable ends (5) from pivot (6) of gear shift control lever assembly by removing clip.
- Disconnect gear shift and select control cables (1) from gear shift control lever assembly (2) while pulling quick joint (4) as shown in figure.
- Remove gear shift control lever assembly mounting nuts (3) and gear shift lever assembly from floor panel.
- Disconnect gear shift and select control cables from transaxle.
- Remove cable grommet bolt, and then remove gear shift and select control cables from floor panel.
Courtesy of SUZUKI OF AMERICA CORP.
