Coolant Circulation

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

While the engine is warmed up (thermostat closed), coolant circulates as follows.

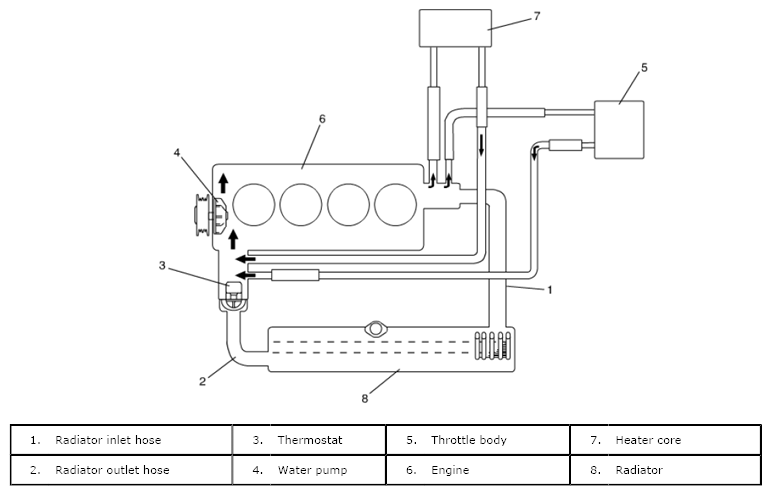

Fig 1: Coolant Circulation Diagram

Courtesy of SUZUKI OF AMERICA CORP.

When coolant is warmed up to normal temperature and the thermostat opens, coolant passes through the radiator core to be cooled as follows.

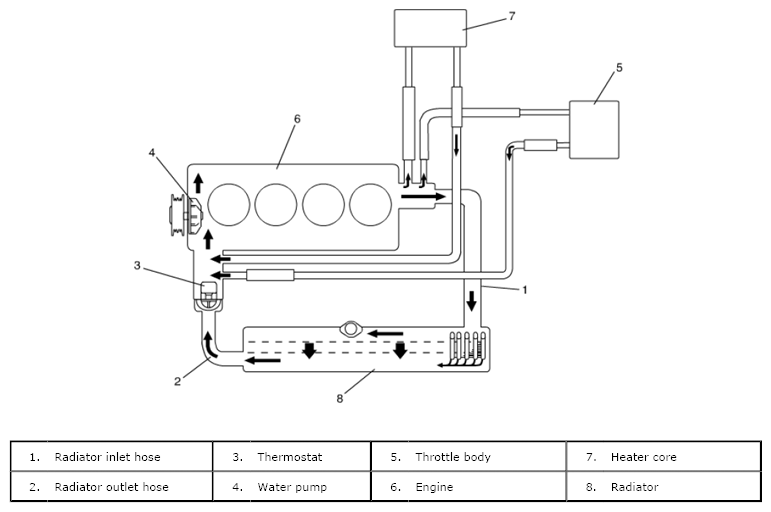

Fig 2: Coolant Circulation - Coolant Warmed Position

Courtesy of SUZUKI OF AMERICA CORP.
