Front Suspension Frame
WARNING:
This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

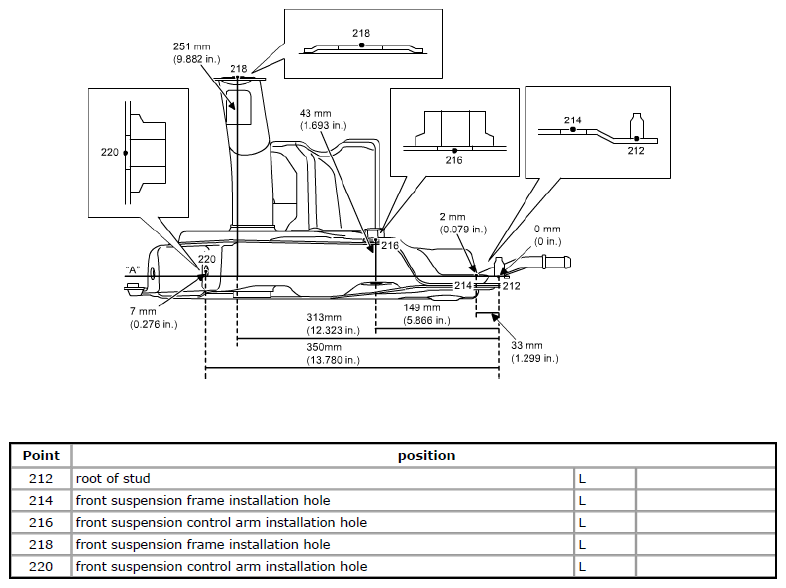

Fig 1: Identifying Body Dimensions - Front Suspension Frame (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

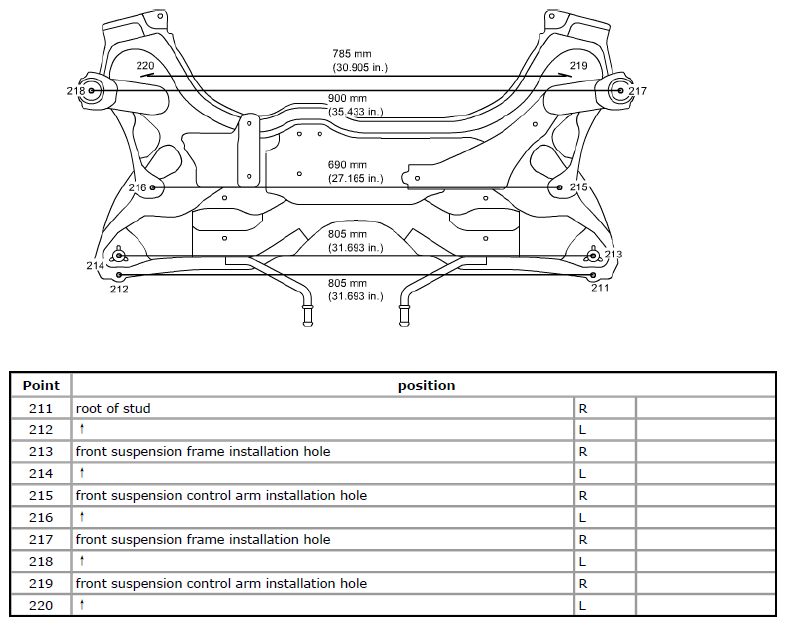

Fig 2: Identifying Body Dimensions - Front Suspension Frame (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
