Power Door Lock Switch Inspection

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.

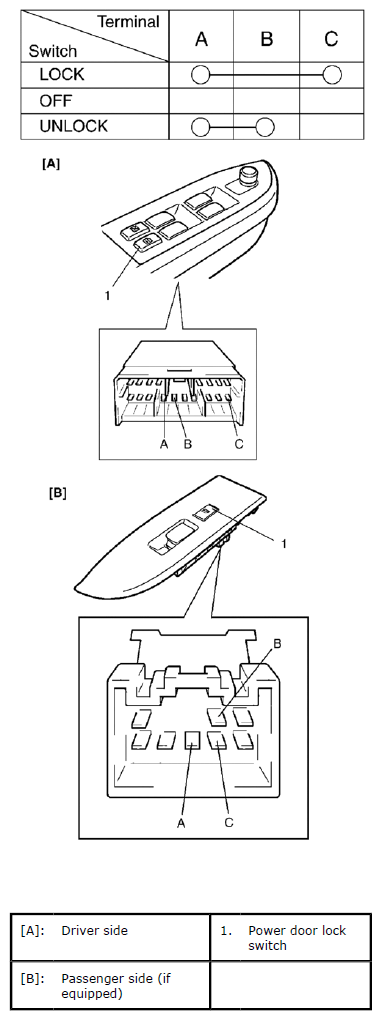

Fig 1: Inspecting Front Door Lock Assembly

Courtesy of SUZUKI OF AMERICA CORP.
