Power Door Lock Actuator Inspection

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Remove door trim from door panel.
For front door, refer to Step 1) to 3) of FRONT DOOR GLASS REMOVAL AND INSTALLATION .

For rear door, refer to Step 1) to 3) of REAR DOOR GLASS REMOVAL AND INSTALLATION .

For rear end door, refer to Step 1) of REAR END DOOR ASSEMBLY REMOVAL AND INSTALLATION (HATCHBACK) .
Disconnect power door lock actuator coupler.
Connect battery positive (+) and negative (-) terminals to the door lock actuator terminals (a, b, c, d) as shown in figure.
If it does not operate as specified in the following table, replace door lock assembly.

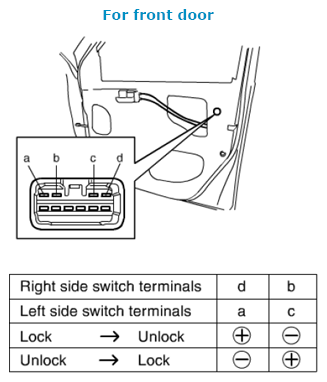

Fig 1: Inspecting Power Door Lock Actuator For Front Door
Courtesy of SUZUKI OF AMERICA CORP.

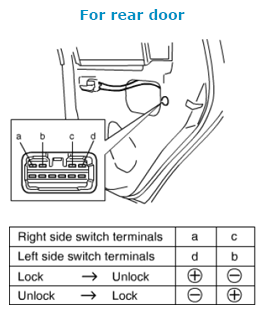

Fig 2: Inspecting Power Door Lock Actuator For Rear Door
Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Inspecting Power Door Lock Actuator For Rear End Door
Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Inspecting Power Door Lock Actuator For Trunk Lid
Courtesy of SUZUKI OF AMERICA CORP.
