D-5 Interior Light System Circuit Diagram (Sedan)

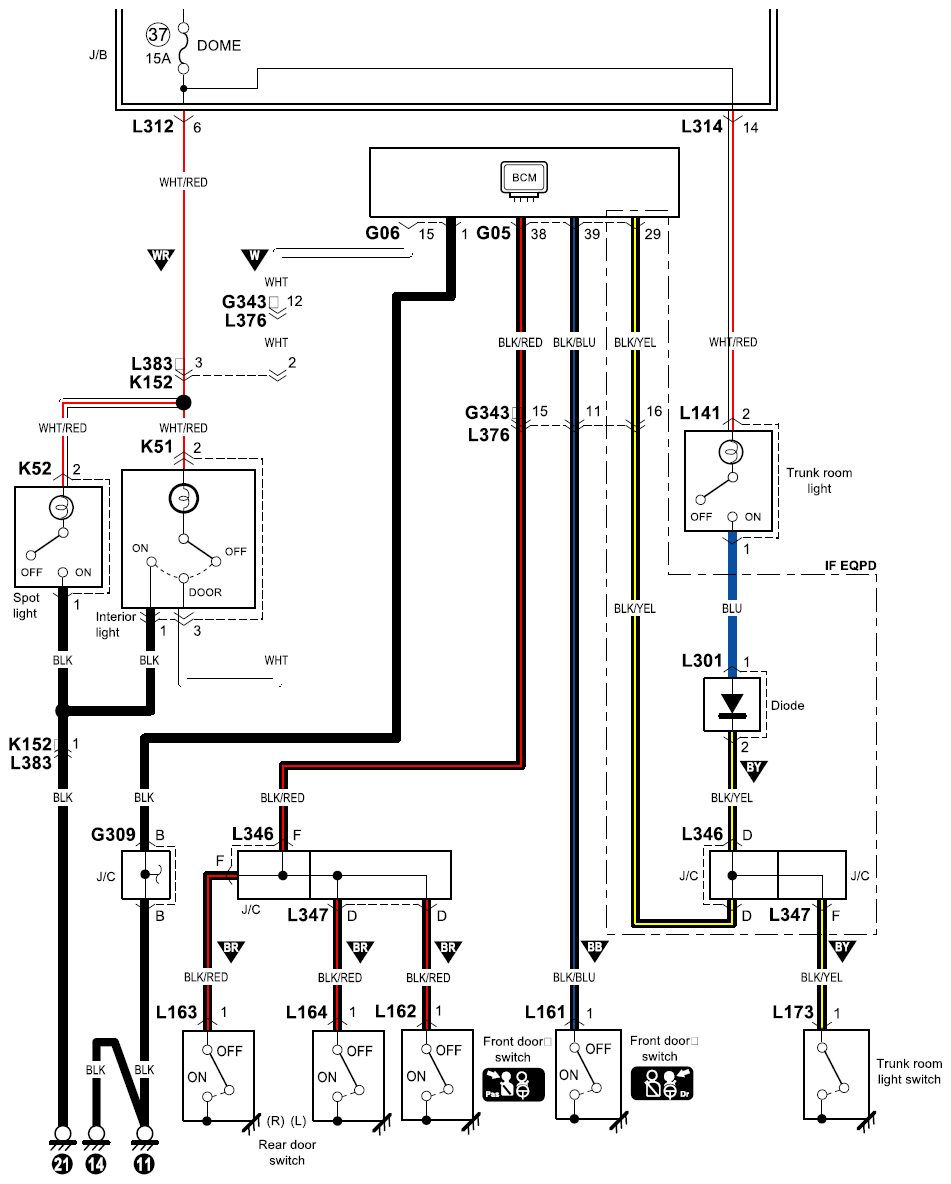

Fig 1: D-5 Interior Light System Circuit Diagram (Sedan)
G06871257Courtesy of SUZUKI OF AMERICA CORP.
