C-1 Combination Meter Circuit Diagram

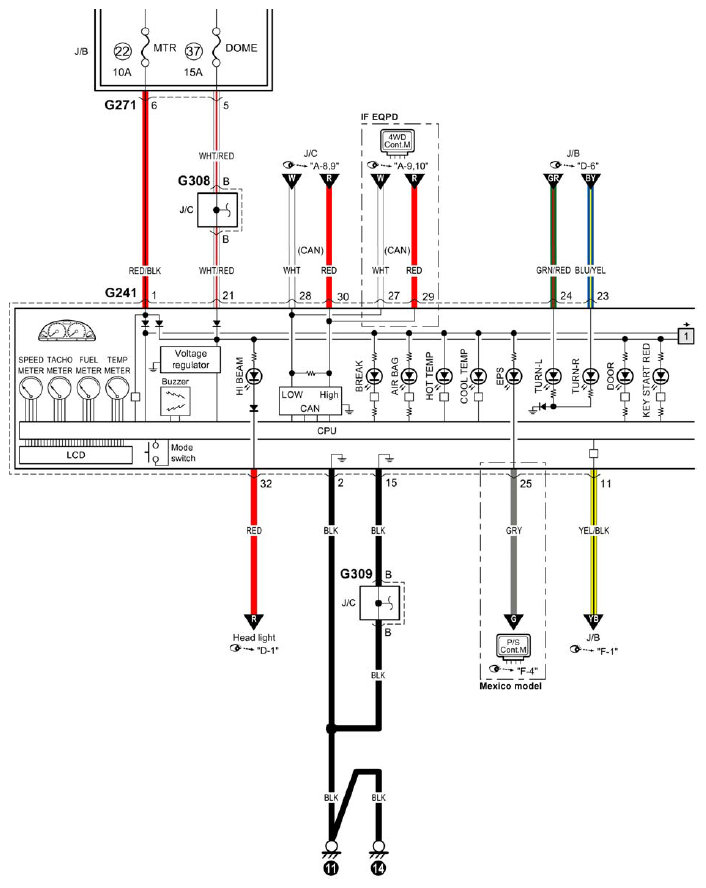

Fig 1: C-1 Combination Meter Circuit Diagram (1 Of 2)
G06871249Courtesy of SUZUKI OF AMERICA CORP.

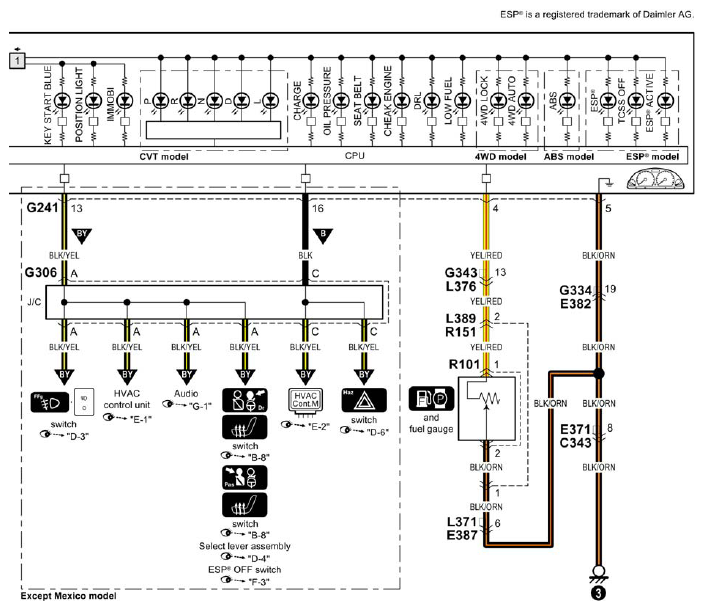

Fig 2: C-1 Combination Meter Circuit Diagram (2 Of 2)
G06871250Courtesy of SUZUKI OF AMERICA CORP.
