B-3 Rear Defogger Circuit Diagram (Hatchback)

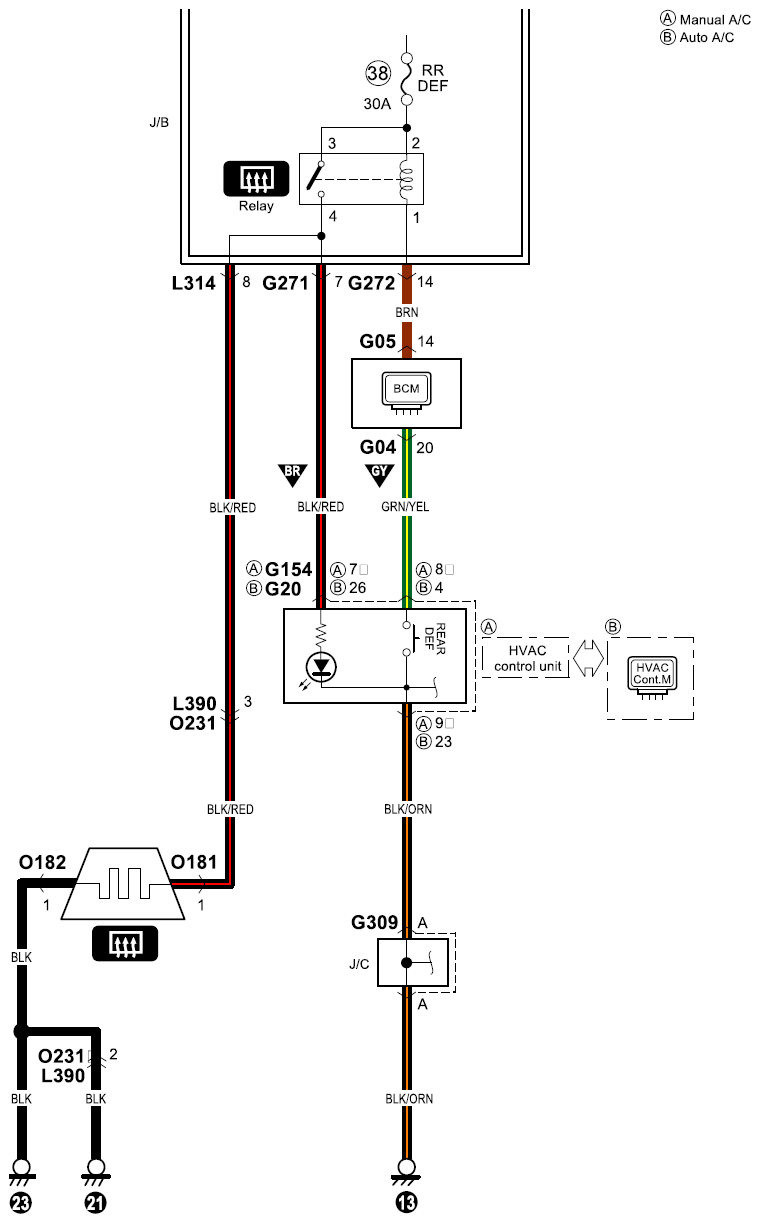

Fig 1: B-3 Rear Defogger Circuit Diagram (Hatchback)
G06871238Courtesy of SUZUKI OF AMERICA CORP.
