Relay Side

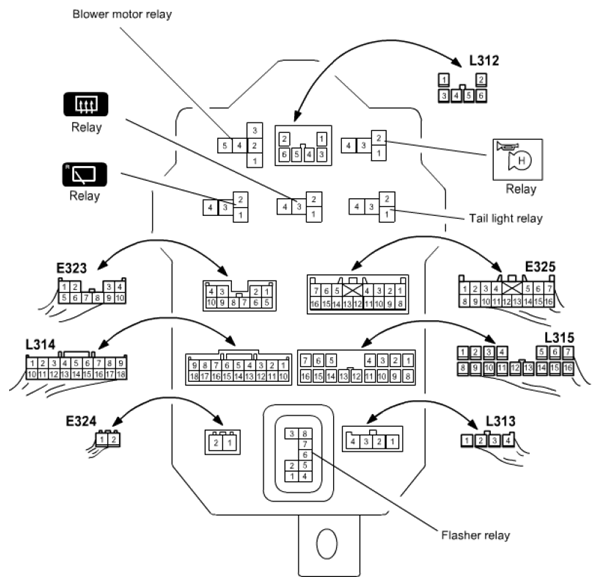

Fig 1: Identifying Junction Block (J/B) Relay Side
G06871211Courtesy of SUZUKI OF AMERICA CORP.
JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Rear Wiper Relay
Rear Defogger Relay
Blower Motor Relay
Horn Relay
Tail Light Relay
Flasher Relay
