J Connector

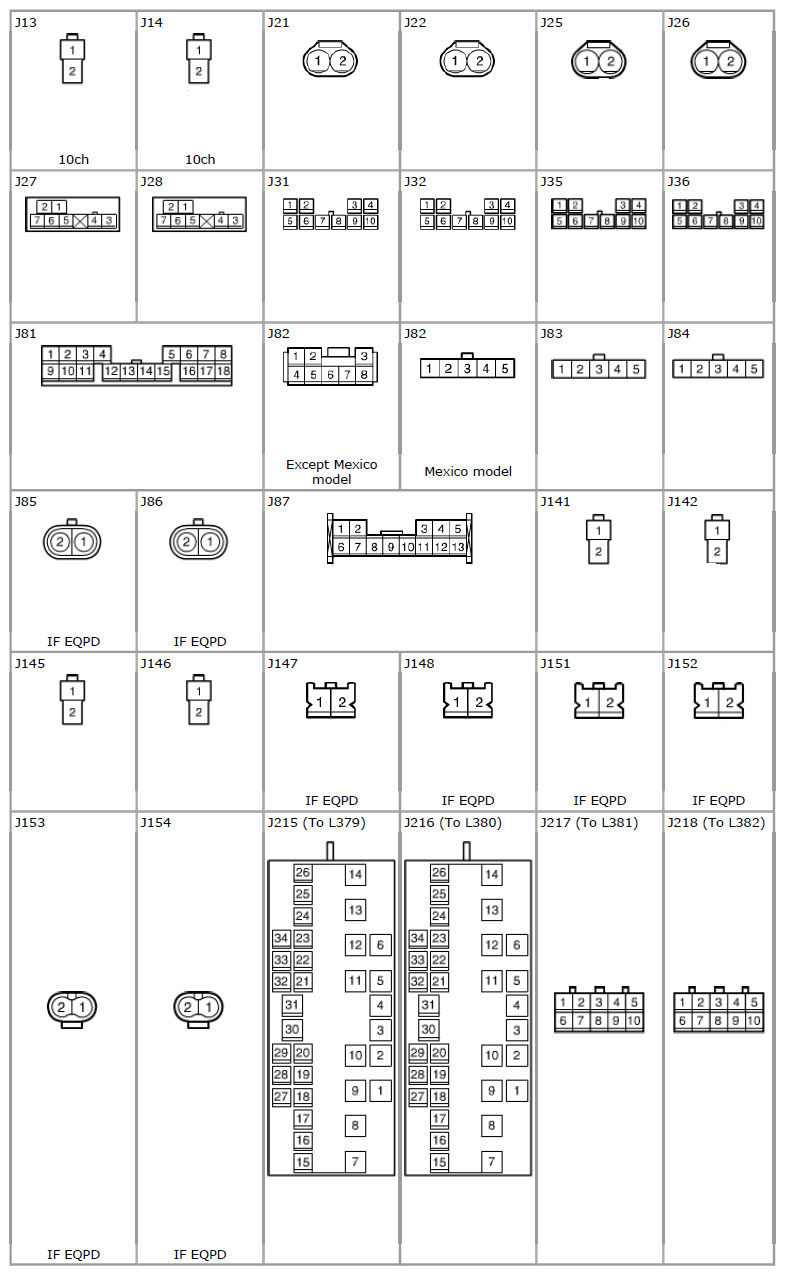

Fig 1: Identifying J Connector And Reference Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
