G Connector

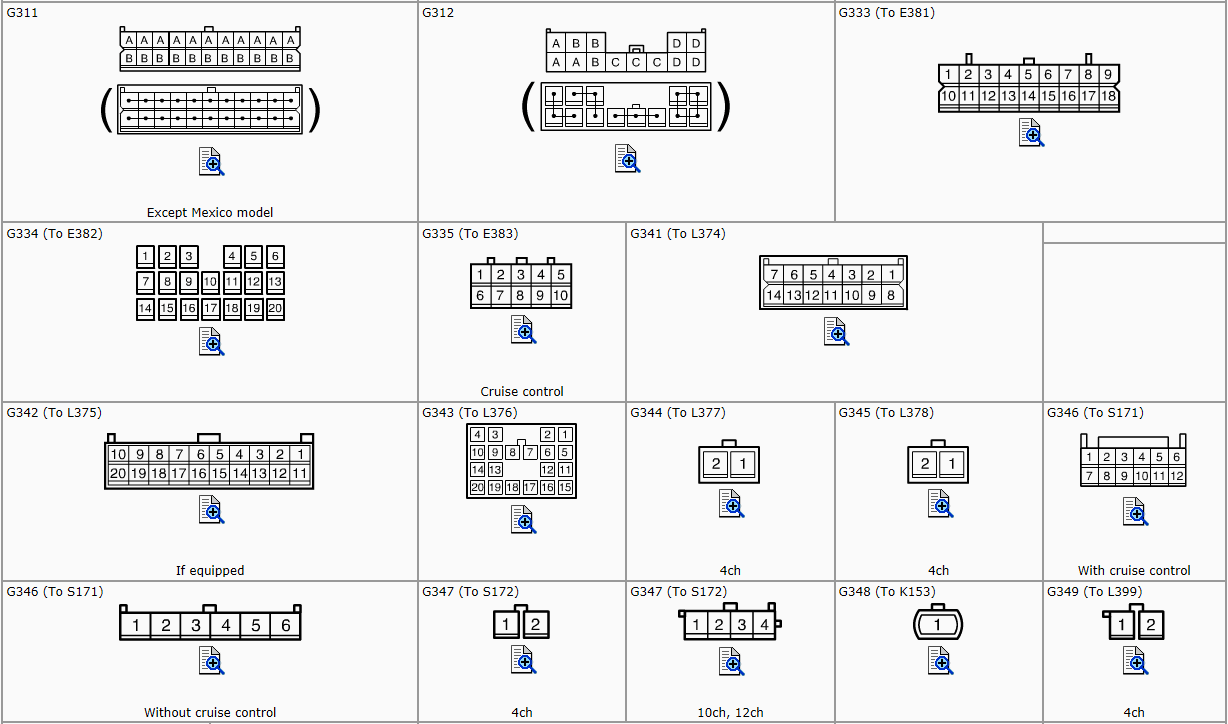

Fig 1: Identifying G Connector And Reference Chart (1 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

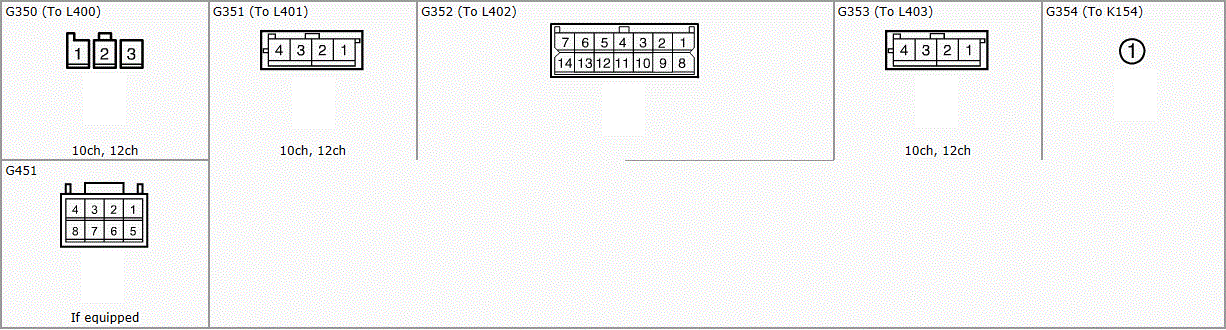

Fig 2: Identifying G Connector And Reference Chart (2 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

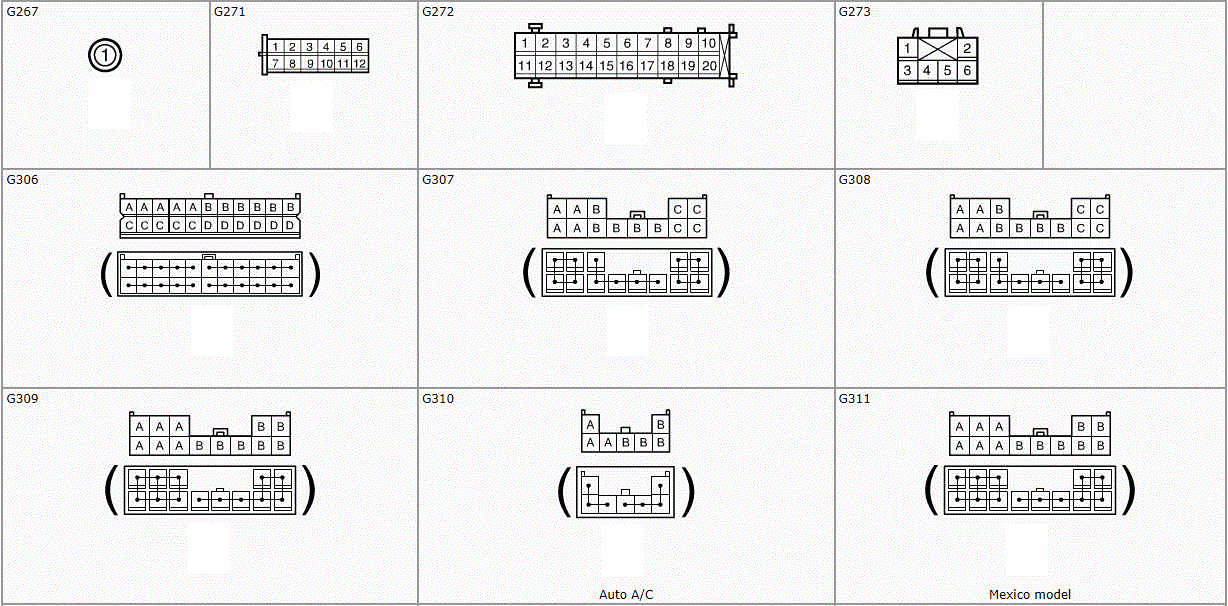

Fig 3: Identifying G Connector And Reference Chart (3 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

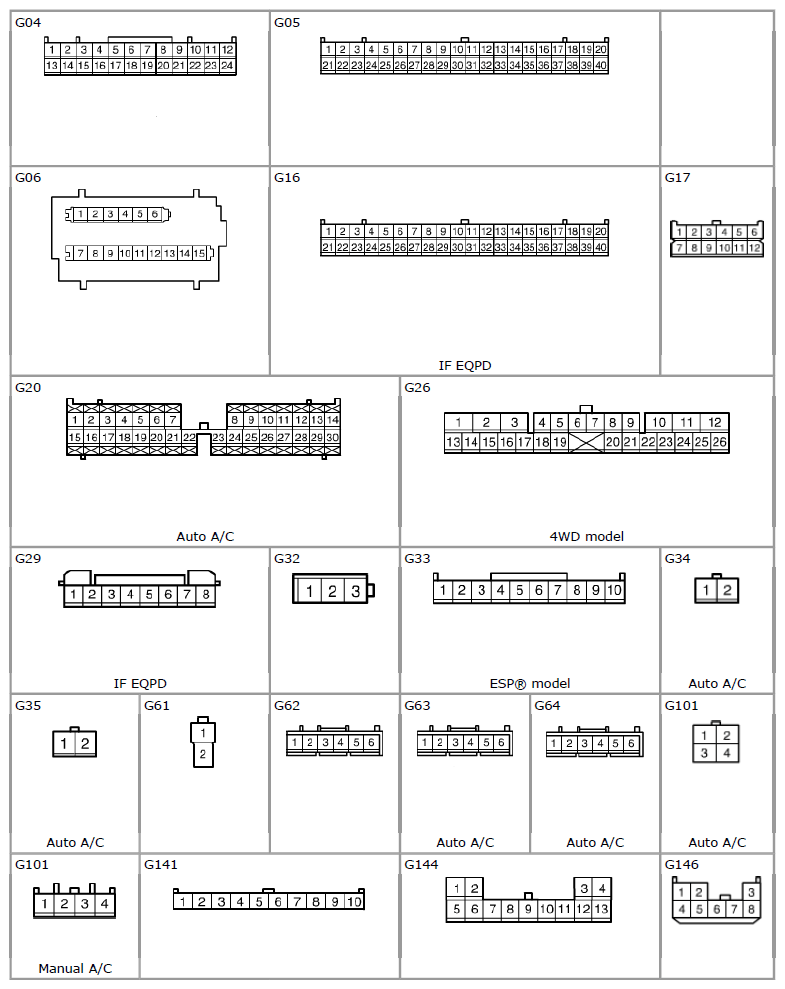

Fig 4: Identifying G Connector And Reference Chart (4 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

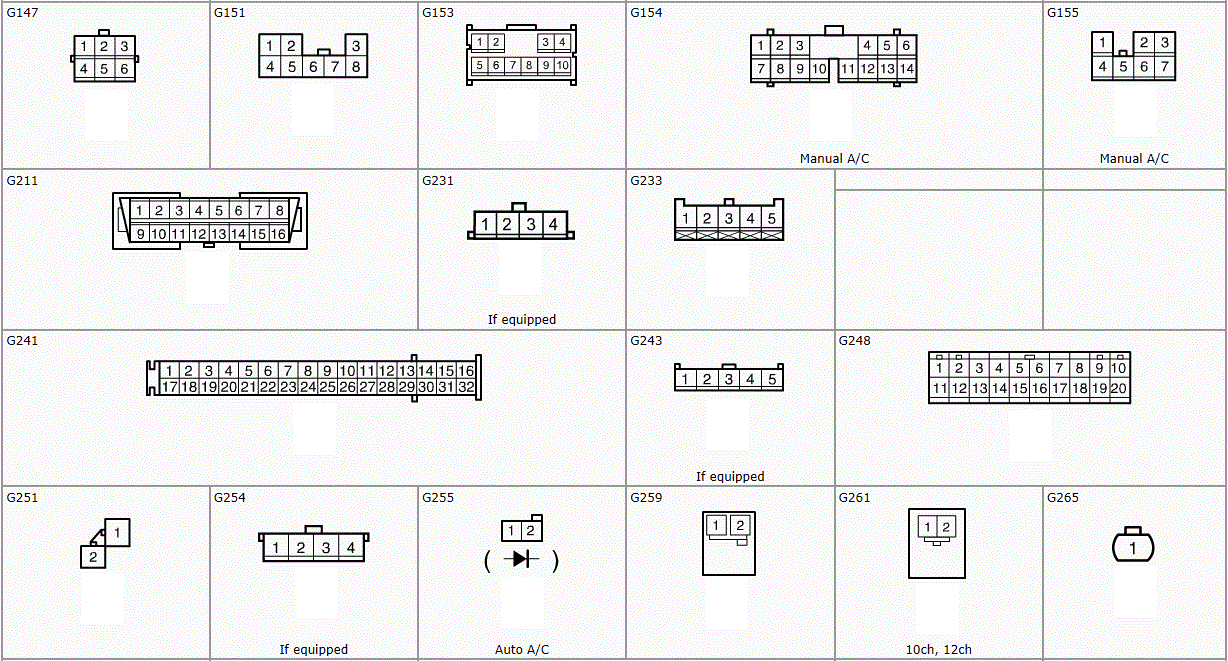

Fig 5: Identifying G Connector And Reference Chart (5 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.
