E Connector

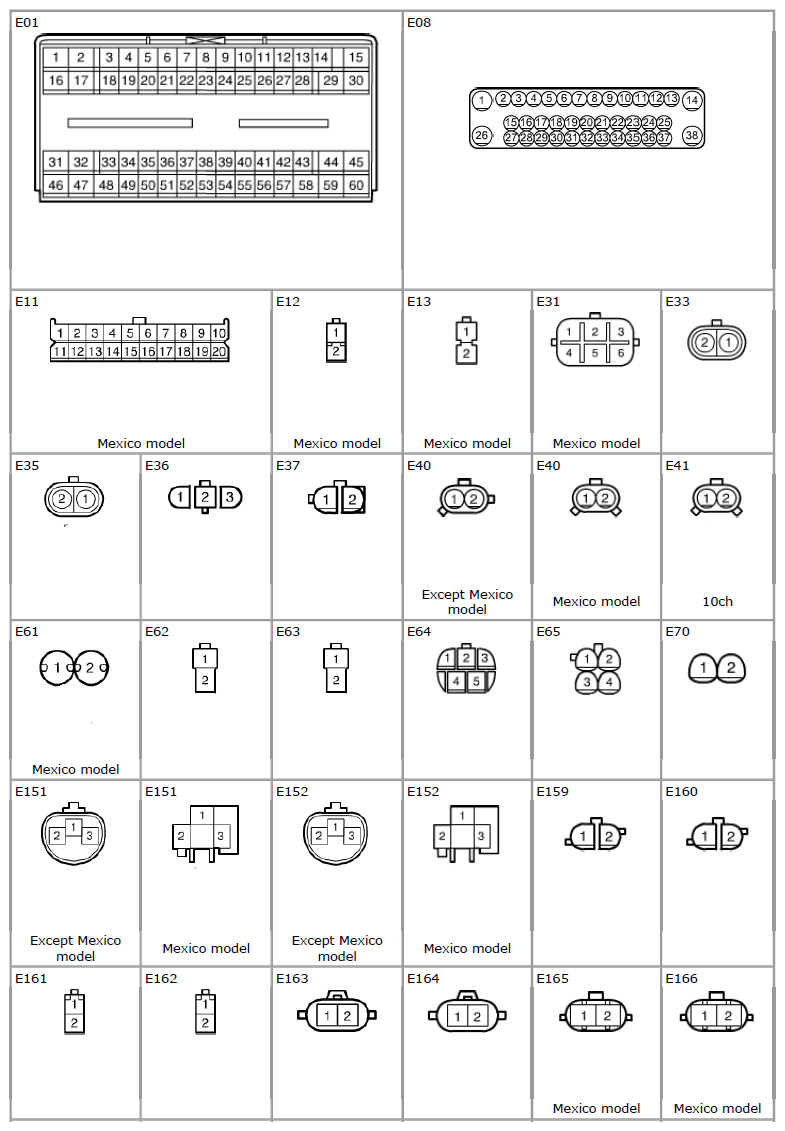

Fig 1: Identifying E Connector And Reference Chart (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

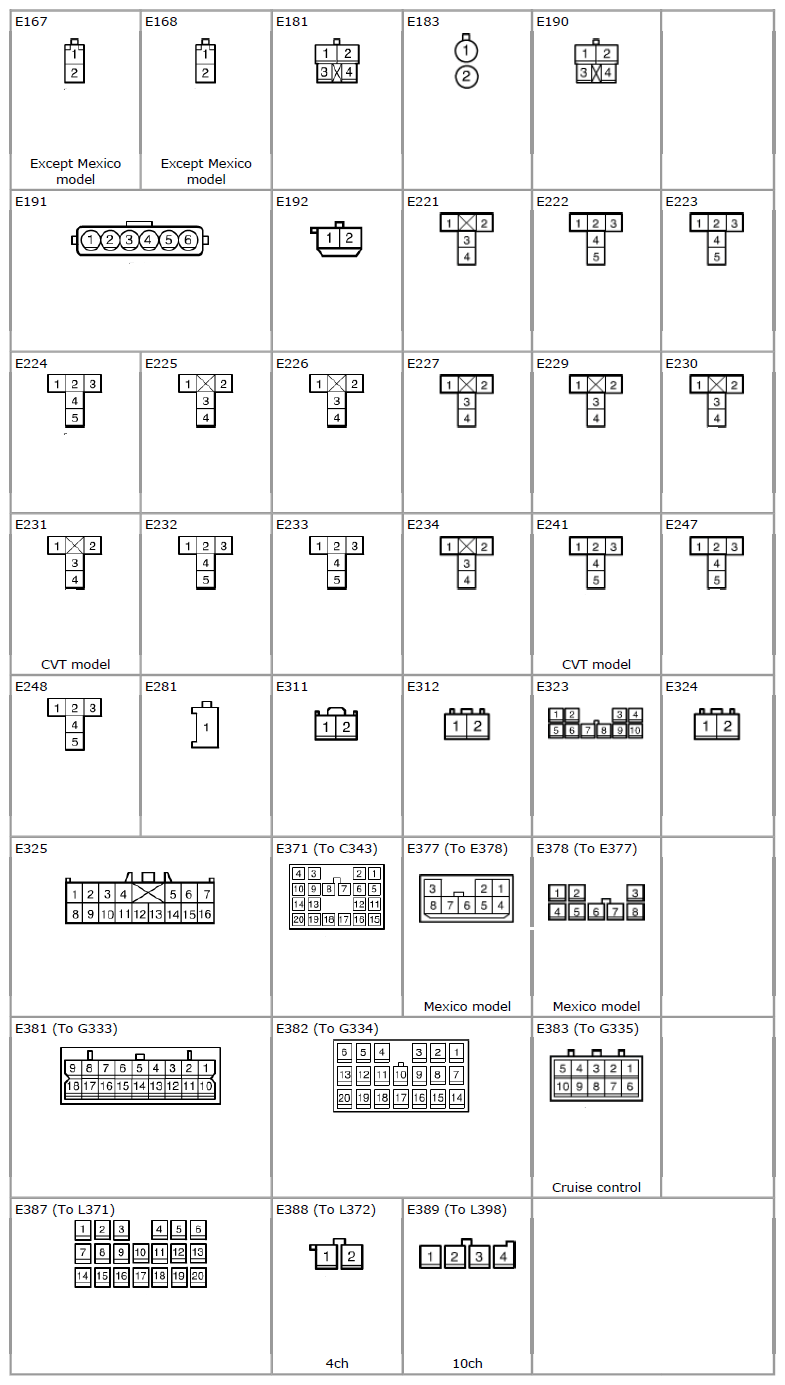

Fig 2: Identifying E Connector And Reference Chart (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
