Symbols and Marks

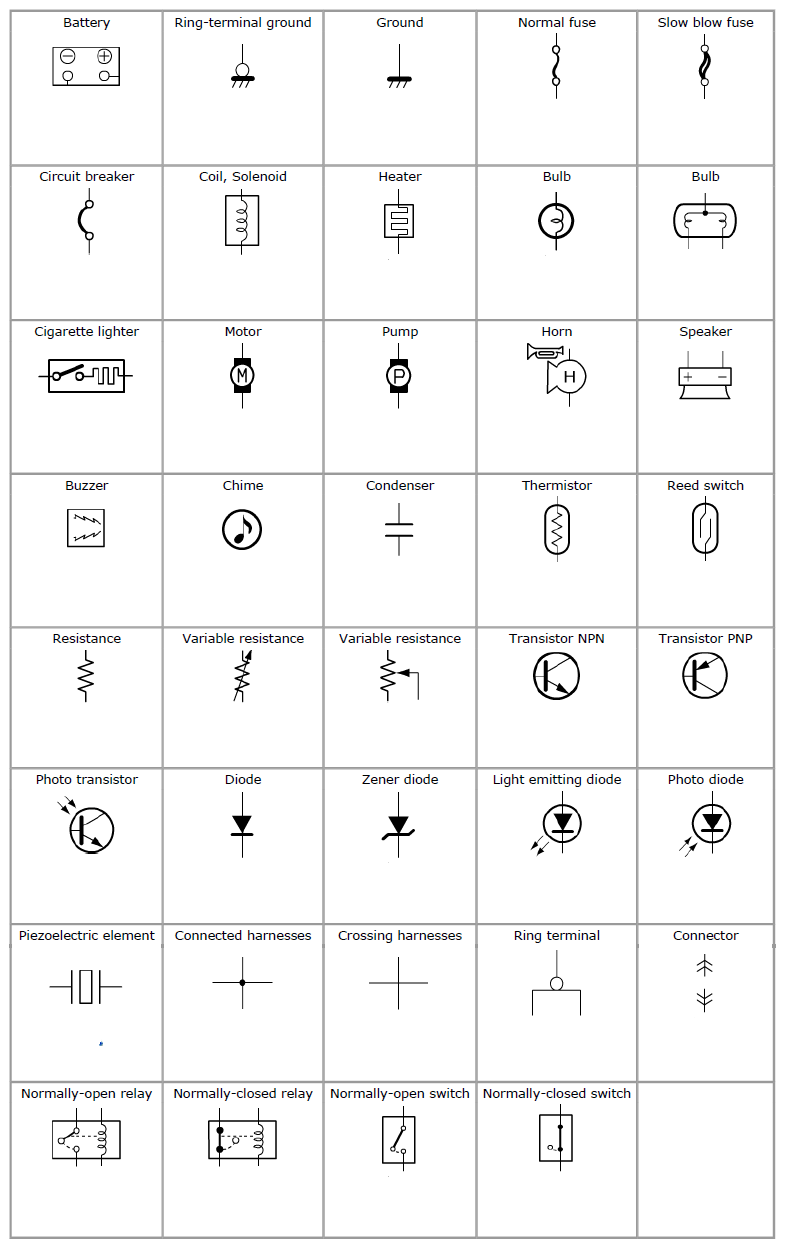

Fig 1: Symbols And Marks Reference Chart (1 Of 2)
G06871180Courtesy of SUZUKI OF AMERICA CORP.

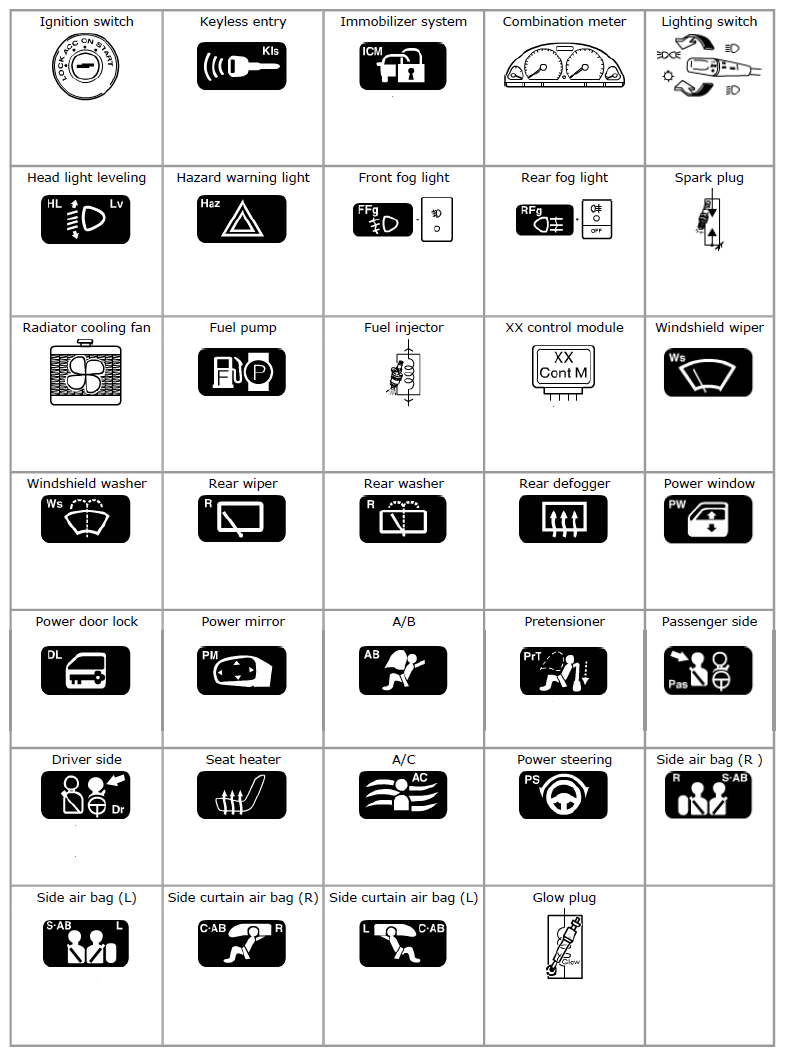

Fig 2: Symbols And Marks Reference Chart (2 Of 2)
G06871181Courtesy of SUZUKI OF AMERICA CORP.
