How to Read Power Supply Diagram

Refer to POWER SUPPLY DIAGRAM .

Refer to SYSTEM CIRCUIT DIAGRAM .

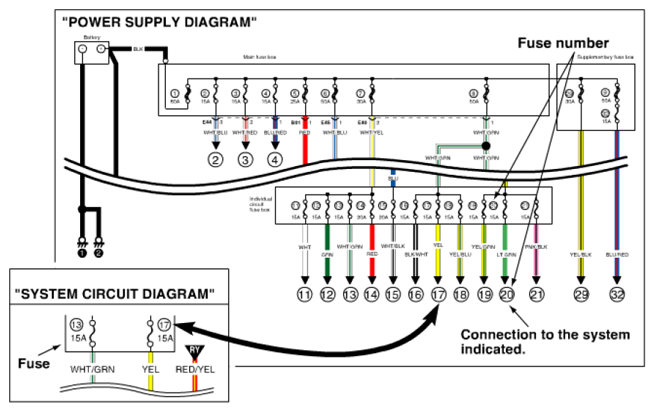

Fig 1: Power Supply Diagram
G06871191Courtesy of SUZUKI OF AMERICA CORP.
