SX4 LE, Standard Trans
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Electronic Stability Program
>>
Diagnostic Information and Procedures
>>
DTC C1063: Solenoid Valve Power Supply Driver Circuit Failure
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

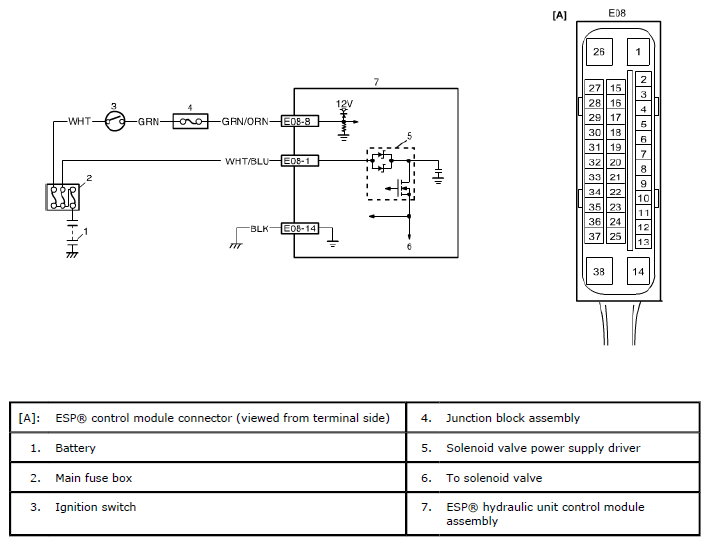

Fig 1: Solenoid Valve Power Supply Driver Circuit - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
