SET/COAST, RES/ACC and CANCEL Switch

Check for resistance between "S61-10" and "S61-12" terminals under each condition below.

If check result is not satisfactory, replace cruise control switch (2).

SET/COAST, RES/ACC and CANCEL switches resistance

All switches released (OFF): Infinity

CANCEL switch (4) pressed (ON): About 0 Ω

SET/COAST switch (5) pressed (ON): 213 - 227 Ω

RES/ACC switch (6) pressed (ON): 882 - 938 Ω

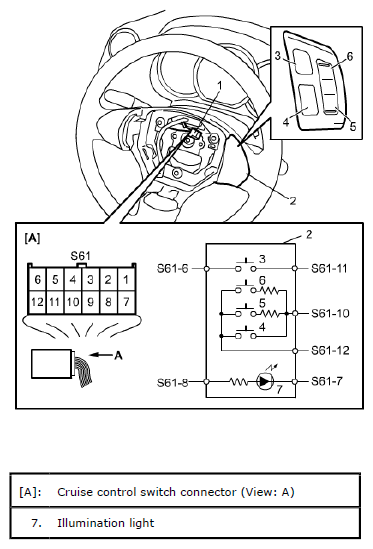

Fig 1: Identifying Set/Coast, Res/Acc And Cancel Switch

Courtesy of SUZUKI OF AMERICA CORP.
