Primary Pulley Speed Sensor Removal and Installation: Removal

  1. Disconnect negative cable from battery.
  2. Remove air cleaner inlet hose. See AIR CLEANER ASSEMBLY REMOVAL AND INSTALLATION
  3. Disconnect connector (1) from primary pulley speed sensor.
  4. Remove primary pulley speed sensor (2) from transaxle.

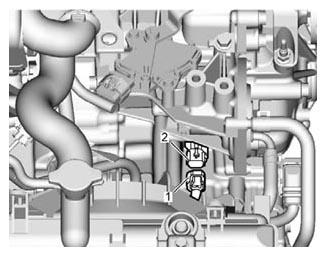

    Fig 1: Identifying Primary Pulley Speed Sensor
    G06866791Courtesy of SUZUKI OF AMERICA CORP.
