CVT Fluid Cooler Removal and Installation: Removal

  1. Disconnect negative cable from battery.
  2. Disconnect CVT fluid cooler No. 1 hose (1) and No. 2 hose (2).
  3. Remove CVT fluid cooler bolts (5), and then remove CVT fluid cooler (3).
  4. Remove fluid cooler bracket (4), if necessary.

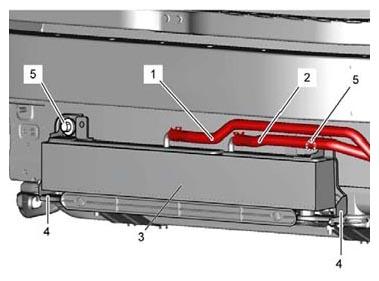

    Fig 1: Identifying CVT Fluid Cooler Bolts
    G06866810Courtesy of SUZUKI OF AMERICA CORP.
