CVT Fluid Cooler Hoses Inspection

Check CVT fluid cooler hoses (1) for fluid leakage, cracks, damage and deterioration. Replace hose and/or clamp if any faulty condition is found.

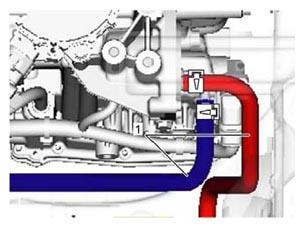

Fig 1: Inspecting CVT Fluid Cooler Hoses

Courtesy of SUZUKI OF AMERICA CORP.
