Front Brake Disc Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Hoist vehicle and remove front wheel.
Remove caliper assembly by removing caliper carrier bolts (2 pcs.).
NOTE: If the removed brake caliper is left hung by the brake hose, the brake hose may be damaged due to the tension caused by the caliper's weight. Hang a removed brake caliper with a wire hook or the like to relieve the brake hose of the tension.

Fig 1: Removing Caliper Carrier Bolts
Courtesy of SUZUKI OF AMERICA CORP.

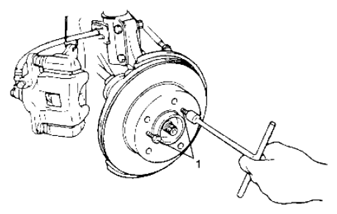

Pull brake disc off by using M8 bolts (1) (2 pcs).

Fig 2: Pulling Brake Disc Off By Using M8 Bolts
Courtesy of SUZUKI OF AMERICA CORP.
