Headlight Housing Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable at battery.
  2. Remove front bumper. Refer to FRONT BUMPER AND REAR BUMPER COMPONENTS .
  3. Remove headlight mounting bolts and clip.
  4. Detach headlight housing (1) from vehicle.

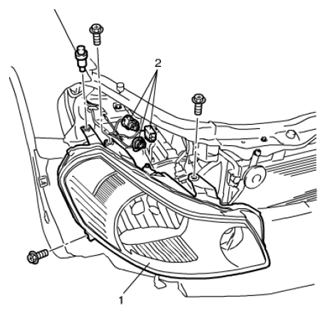

    Fig 1: Removing Headlight Housing
    G06869120Courtesy of SUZUKI OF AMERICA CORP.
  5. Disconnect couplers (2) from headlight housing (1).
