Warning, Caution and Information Labels Location

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

The figure shows main labels among others that are attached to vehicle component parts.

When servicing and handling parts, refer to WARNING/CAUTION instructions printed on labels.

If any WARNING/CAUTION label is found stained or damaged, clean or replace it as necessary.

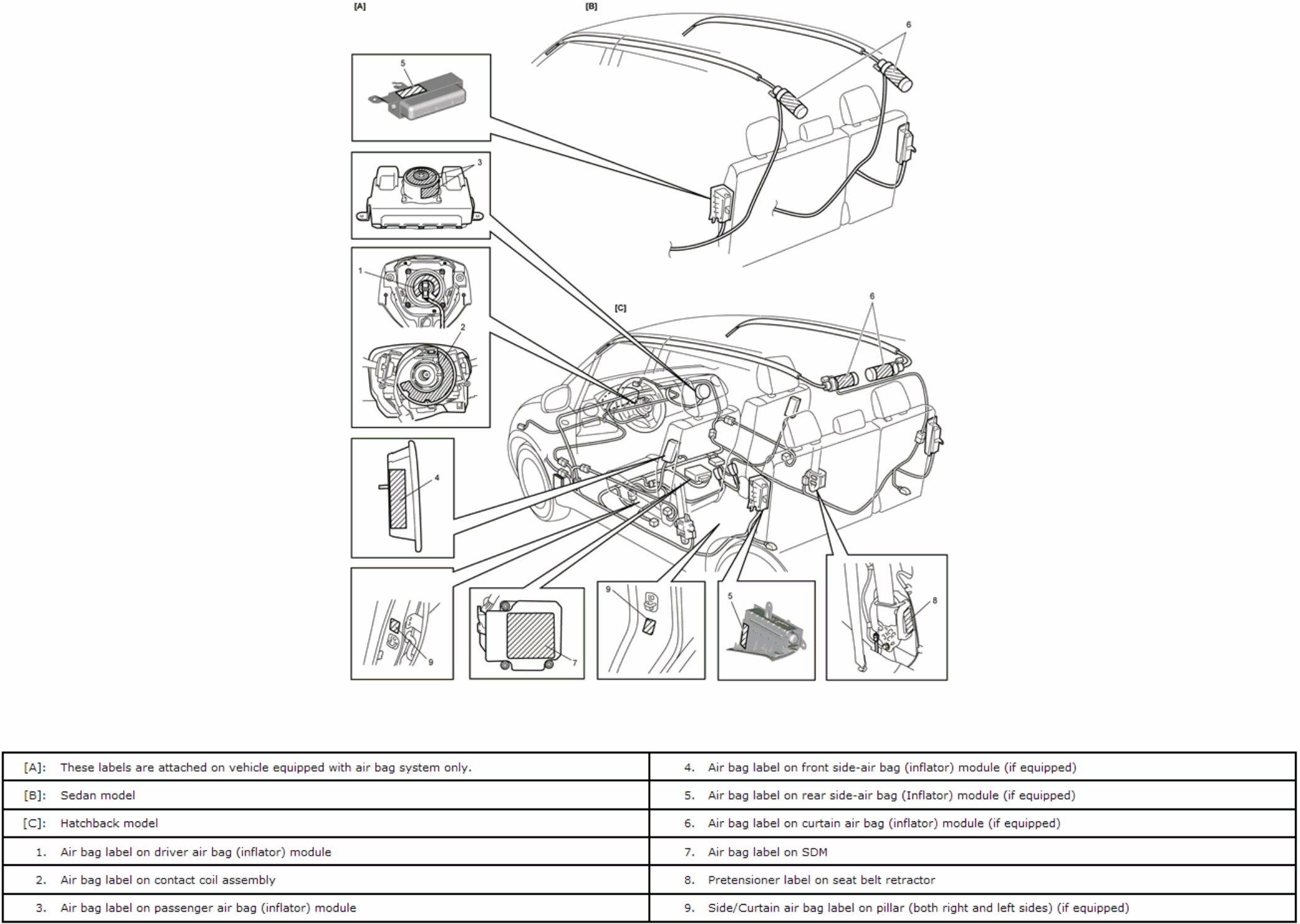

Fig 1: Identifying Warning, Caution And Information Labels Location (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

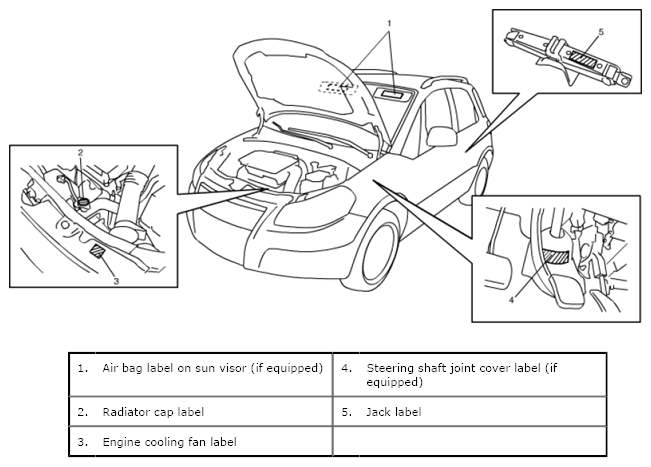

Fig 2: Identifying Warning, Caution And Information Labels Location (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
