Keyless Entry Receiver Removal and Installation (If Equipped): Removal
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative cable at battery.
- Remove glove box or console box referring to Step 6) of INSTRUMENT PANEL REMOVAL AND INSTALLATION or CONSOLE BOX COMPONENTS .
- Disconnect keyless entry receiver coupler.

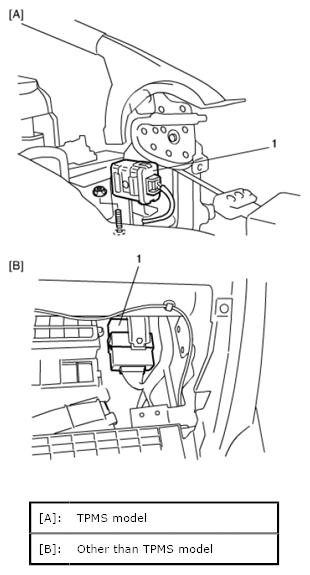

- Remove keyless entry receiver (1).
