Gear Shift and Select Shaft Assembly Disassembly and Reassembly

Reference: MANUAL TRANSAXLE UNIT DISMOUNTING AND REMOUNTING

Reference: GEAR SHIFT AND SELECT SHAFT ASSEMBLY REMOVAL AND INSTALLATION

Reference: GEAR SHIFT AND SELECT SHAFT ASSEMBLY COMPONENTS

• Push spring pins out using special tool as shown in figure below.

  Special Tool

  1. 09925-78210 6.0 mm
• Inspect component parts for wear, distortion or damage. If any detect is found, replace detective part with new one.
  NOTE: The gear shift and select shaft may be bent if the spring pins are driven without using any support on the back of the spring pin fitting location. Be sure to support the spring pin fitting location from behind with a wooden block when installing the spring pins.

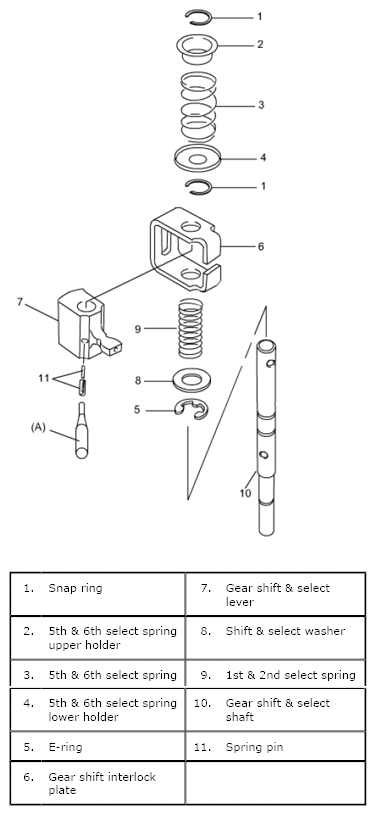

  Fig 1: Exploded View Of Gear Shift And Select Shaft Assembly

  Courtesy of SUZUKI OF AMERICA CORP.
