D-5 Interior Light System Circuit Diagram (Hatchback)

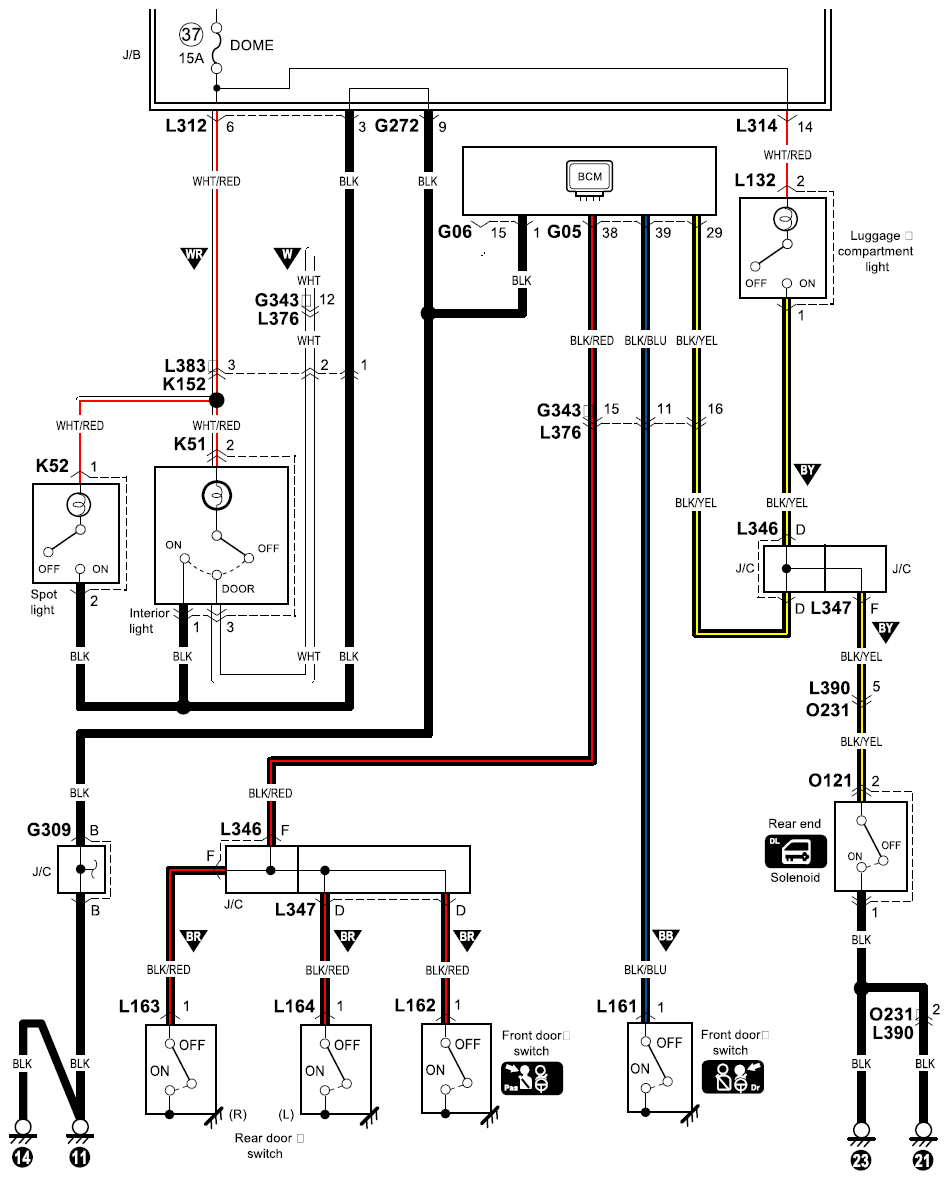

Fig 1: D-5 Interior Light System Circuit Diagram (Hatchback)
G06871256Courtesy of SUZUKI OF AMERICA CORP.
