Around Battery

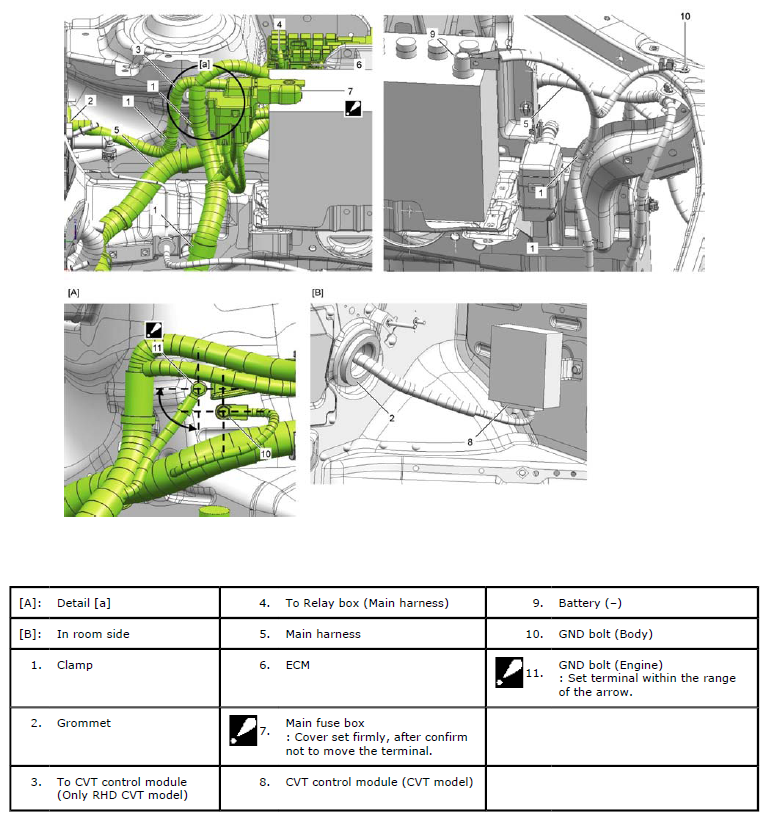

Fig 1: Identifying Around Battery Harness (1 Of 3)
G06871302Courtesy of SUZUKI OF AMERICA CORP.

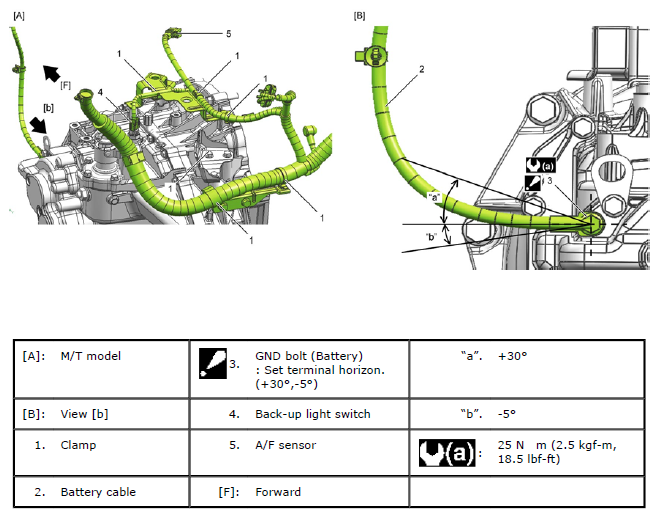

Fig 2: Identifying Around Battery Harness (2 Of 3)
G06871303Courtesy of SUZUKI OF AMERICA CORP.
Fig 3: Identifying Around Battery Harness (3 Of 3)
G00539316Courtesy of SUZUKI OF AMERICA CORP.
