Clutch Pedal Position (CPP) Switch Inspection and Adjustment: Adjustment

With clutch pedal (1) depressed, adjust switch (2) position so that clearance between end of thread and clutch pedal arm is within specification and then tighten lock nut to specified torque.

Clearance between end of thread and clutch pedal arm

"a": 1.5 - 2.0 mm (0.06 - 0.08 in.)

Tightening torque

CPP switch lock nut (a): 7.5 N.m (0.75 kg-m, 5.5 lbf-ft)

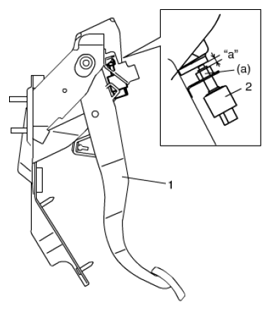

Fig 1: Checking Clearance Between End Of Thread And Clutch Pedal Arm
