Clutch Fluid Pipe Removal and Installation: Removal

CAUTION: Brake fluid is extremely damaging to painted surfaces. If brake fluid contacts a painted surface, immediately wipe it off and flush the surface thoroughly with water.

Remove air cleaner assembly. See AIR CLEANER ASSEMBLY REMOVAL AND INSTALLATION .
Remove dust and dirt from each joint of pipe to be disconnected and clean around brake master cylinder reservoir cap.
Take out fluid with syringe or such from brake master cylinder reservoir.
Pull clamp (1) of clutch master cylinder (3) and pull clamp (5) of fluid pipe joint (4), and then disconnect clutch fluid pipe (2).
Disconnect clamp (6) of clutch fluid pipe (2), and then disconnect clutch fluid pipe (2).

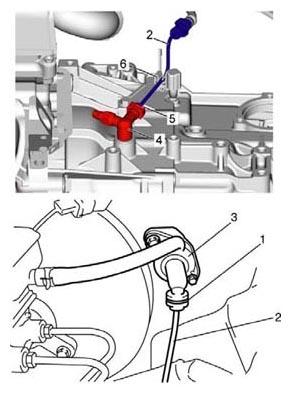

Fig 1: Identifying Clutch Fluid Pipe And Hose Components
Courtesy of SUZUKI OF AMERICA CORP.
