Clutch Cover and Clutch Disc Components

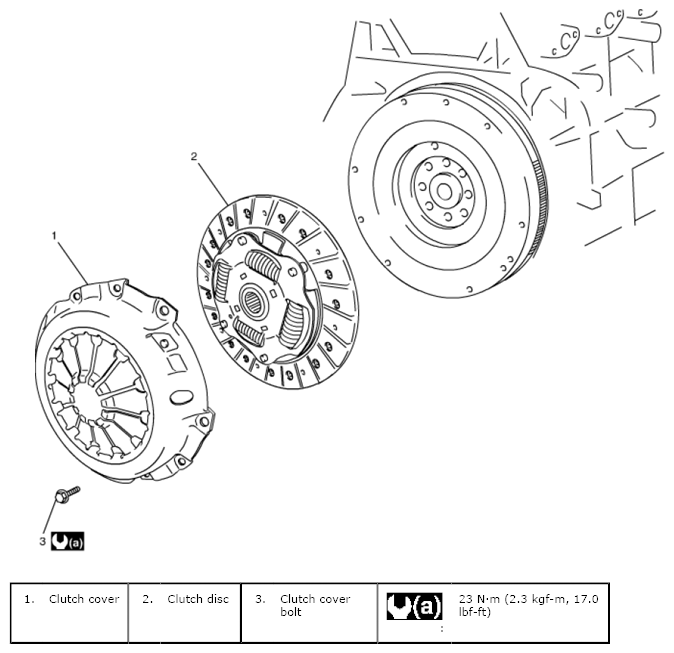

Fig 1: Clutch Cover And Clutch Disc Replacement Components With Torque Specifications
G06868737Courtesy of SUZUKI OF AMERICA CORP.
