Rear Axle Removal and Installation (Rear Disc Brake Model): Installation

Reference: REAR AXLE AND COIL SPRING INSPECTION

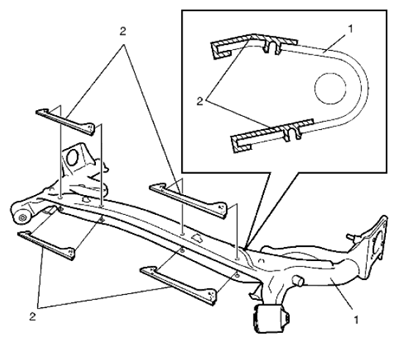

1. Install rubber edge covers (2) (if equipped) to rear axle (1) as shown in figure, if removed.
   Fig 1: Installing Rubber Edge Covers To Rear Axle

   Courtesy of SUZUKI OF AMERICA CORP.
2. Install brake pipes to rear axle, if removed.
3. Place rear axle on floor jacks.

   Then install rear axle and new rear axle bolts (1) and tighten bolts temporarily.

   Fig 2: Installing Rear Axle And New Rear Axle Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
4. Install coil springs referring to REAR COIL SPRING REMOVAL AND INSTALLATION .
5. For 4WD model, install rear differential, propeller shaft and rear drive shaft referring to REAR DIFFERENTIAL DISMOUNTING AND REMOUNTING .
6. Install rear wheel hubs referring to Step 2) to 4)) of "Installation" under REAR WHEEL HUB ASSEMBLY REMOVAL AND INSTALLATION (REAR DISC BRAKE MODEL) .
7. Connect brake flexible hoses (1) to bracket on rear axle with E-rings (2) and tighten brake pipe flare nuts (3) to specified torque.

   Tightening torque

   Brake pipe flare nut (a): 16 N.m (1.6 kg-m, 11.5 lbf-ft)

   Fig 3: Identifying Brake Pipe Flare Nut

   Courtesy of SUZUKI OF AMERICA CORP.
8. Install rear brake caliper, brake flexible hose and parking brake cable referring to REAR DISC BRAKE CALIPER REMOVAL AND INSTALLATION .
9. Install wheel speed sensor clamps (2) and tighten parking brake cable clamp nuts (1) to specified torque.

   Tightening torque

   Parking brake cable clamp nut (a): 26 N.m (2.6 kg-m, 19.0 lbf-ft)

   Fig 4: Tightening Parking Brake Cable Clamp Nuts

   Courtesy of SUZUKI OF AMERICA CORP.
10. Install exhaust center pipe and muffler.
11. Fill reservoir with brake fluid and bleed brake system. For bleeding operation referring to AIR BLEEDING OF BRAKE SYSTEM .
12. Install wheel and tighten wheel nuts to specified torque referring to WHEEL (WITH TIRE) REMOVAL AND INSTALLATION .
13. Adjust parking brake cable. For adjustment, refer to PARKING BRAKE INSPECTION AND ADJUSTMENT .
14. Lower hoist and bounce vehicle up and down several times to stabilize suspension.
15. Tighten shock absorber lower nuts and rear axle bolts to specified torque.
    NOTE: When tightening these nuts and bolts, be sure that vehicle is not on hoist and in unloaded condition.

    Tightening torque

    Rear shock absorber lower nut: 90 N.m (9.0 kg-m, 65.0 lbf-ft)

    Rear axle bolt: 73 N.m (7.3 kg-m, 53.0 lbf-ft)

16. Perform brake test (foot brake and parking brake).
17. Check each installed part for fluid leakage.
