Hydraulic Pressure in P/S Circuit Check

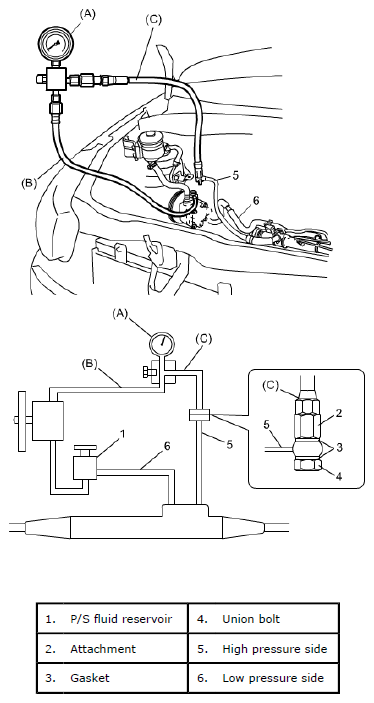

- After cleaning joint of high pressure hose and P/S pump thoroughly, disconnect hose from pump and install special tool (oil pressure gauge, attachment and hose).
Special Tool
- 09915-77412
- 09915-77420
- 09945-36010
- Check each connection for fluid leakage and bleed air. Refer to P/S SYSTEM AIR BLEEDING PROCEDURE: HYDRAULIC TYPE .
- With engine idling, turn steering wheel and warm up engine till temperature of fluid in tank rises to 50 - 60 °C (122 - 140 °F).
- Check back pressure by measuring hydraulic pressure with engine idling and hands off steering wheel. When back pressure is higher than specified values, check control valve and piping for clogging.
Back pressure
Lower than 1000 kPa (10 kgf/cm 2 , 142 psi)
- Check relief pressure.
- With engine idling, close gauge valve (2) gradually while watching pressure increase indicated by gauge and take reading of relief pressure (maximum hydraulic pressure).
- If it is higher than specified values, possible cause is malfunction of relief valve.
- If it is lower than specified values, possible cause is either failure of P/S pump (4) or relief valve.
Relief pressure
10100 - 10600 kPa (103 - 108 kgf/cm 2 , 1465 - 1537 psi)
CAUTION: If the gauge valve is kept closed for too long, the P/S pump will be damaged. Do not close the gauge valve for more than 10 seconds. - Open gauge valve (2) fully with engine idling. Then turn steering wheel to the left or right fully and take reading of relief pressure.
- If it is higher than specified values, possible cause is malfunction of relief valve.
- If it is lower than specified values, possible cause is failure in steering gear case (5). Replace gear case.
Relief pressure
10100 - 10600 kPa (103 - 108 kgf/cm 2 , 1465 - 1537 psi)
CAUTION: If the steering wheel is held at the fully turned position for too long, the P/S pump will be damaged. Do not hold the steering wheel at the fully turned position for more than 10 seconds.
