Tie-Rod/Rack Boot Removal and Installation: Installation

Install tie-rod (1) and spacer (3) to rack (2).
Tighten tie-rod ball nut (4) to specified torque.
Tightening torque

Tie-rod ball nut (a): 88 N.m (8.8 kg-m, 64.0 lbf-ft)

Fig 1: Identifying Tie-Rod Ball Nut Tightening Order
Courtesy of SUZUKI OF AMERICA CORP.
Apply grease "A" to boot inside as shown in figure. Position boot properly in grooves of gear case (or rack side mount) and tie-rod. After this, check to ensure that boot is free from twist and dent.
"A": Grease 99000-25050 (SUZUKI Super Grease E)

Fig 2: Identifying Grease Application Area For Boot
Courtesy of SUZUKI OF AMERICA CORP.

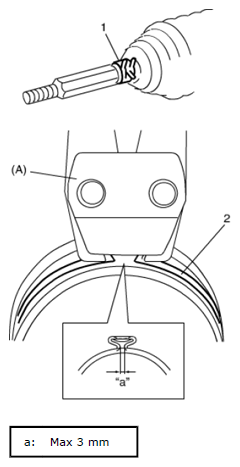

Clamp boot with clip (1) and fasten new band (2) securely using special tool.
NOTE: After clamping, make sure that the boot installation part is fixed.
If the boot turns easily by hand, tighten with higher torque to fix it firmly.

Special Tool

(A): 09943-57011

Fig 3: Clamping Boot With Clip
Courtesy of SUZUKI OF AMERICA CORP.
Install tie-rod end lock nut and tie-rod end to tie-rod. Position lock nut to marking (1) made in removal.
NOTE: When tie-rod was replaced, measure length "A" on removed tie-rod and use it on new replacement tie-rod so as to position lock nut properly.

Fig 4: Identifying Lock Nut Marking
Courtesy of SUZUKI OF AMERICA CORP.
Tighten tie-rod end lock nut to specified torque.
Tightening torque

Tie-rod end lock nut (a): 45 N.m (4.5 kg-m, 32.5 lbf-ft)

Fig 5: Identifying Tie-Rod End Lock Nut Tightening Order
Courtesy of SUZUKI OF AMERICA CORP.
Install steering gear case to vehicle referring to STEERING GEAR CASE ASSEMBLY REMOVAL AND INSTALLATION: HYDRAULIC TYPE .
