Front Seat Belt Components

WARNING:
  • Never attempt to disassemble or repair the seat belt pretensioner (retractor). If any abnormality is found, be sure to replace it with new one as an assembly.
  • Be sure to read PRECAUTIONS ON SERVICE AND DIAGNOSIS OF SEAT BELT  before starting to work and observe every precaution during work. Neglecting them may result in personal injury or inactivation of the seat belt pretensioner when necessary.

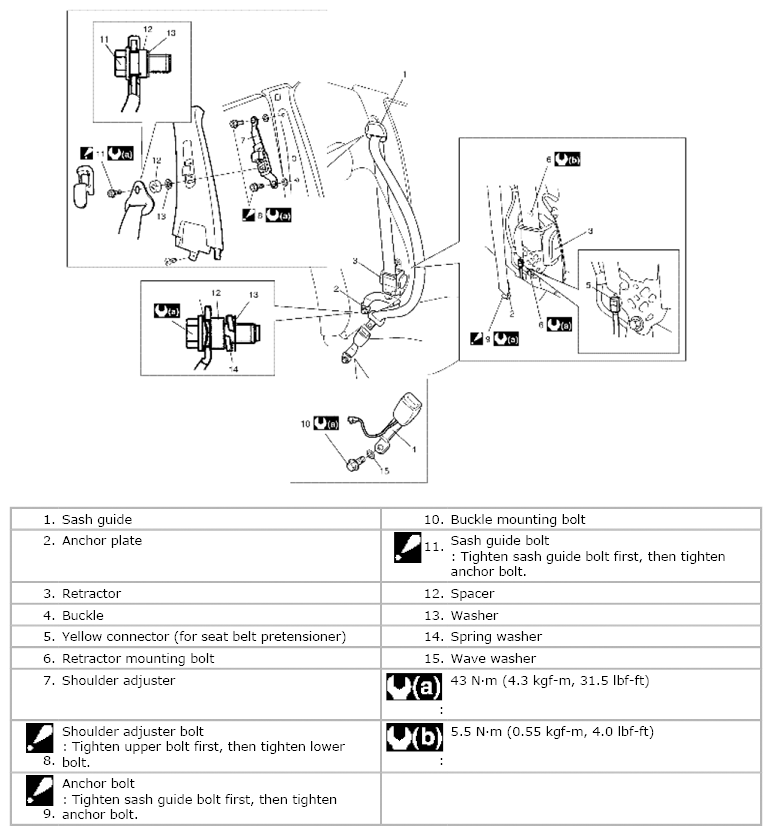

    Fig 1: Front Seat Belt Replacement Components With Torque Specifications
    G06868791Courtesy of SUZUKI OF AMERICA CORP.
