Driver Air Bag (Inflator) Module Removal and Installation: Installation

Reference: DRIVER AIR BAG (INFLATOR) MODULE INSPECTION: EXCEPT ADVANCED AIR BAG

1. Connect horn connector (1) securely (if equipped).
2. Connect driver air bag (inflator) module connector (2) to driver air bag (inflator) module (3) securely as shown in figure.
   1. Connect connector.
   2. Lock connector with lock button.

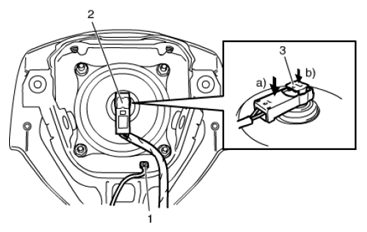

      Fig 1: Connecting Driver Air Bag (Inflator) Module Connector To Driver Air Bag (Inflator) Module

      Courtesy of SUZUKI OF AMERICA CORP.
3. Install driver air bag (inflator) module (1) to steering wheel (2), taking care so that no part of wire harness is caught between them.
4. Make sure that clearance between module (1) and steering wheel (2) is uniform all the way.
5. Tighten driver air bag (inflator) module mounting bolt (left side) (3) to specified torque first and then driver air bag (inflator) module mounting bolt (right side) (4) to specified torque.

   Tightening torque

   Driver air bag (inflator) module mounting bolt (a): 9 N.m (0.9 kg-m, 6.5 lbf-ft)

   Fig 2: Installing Driver Air Bag (Inflator) Module To Steering Wheel

   Courtesy of SUZUKI OF AMERICA CORP.
6. Enable air bag system. Refer to ENABLING AIR BAG SYSTEM: EXCEPT ADVANCED AIR BAG .
7. Connect negative (-) cable at battery.
