Disabling Air Bag System

  1. Turn steering wheel so that vehicle's wheels (front tires) are pointing straight ahead.
  2. Disconnect negative (-) cable at battery.
  3. Turn ignition switch to "LOCK" position and remove key.
  4. Remove "A/B" fuse from junction block assembly.
  5. Remove driver side front pillar lower trim and disconnect yellow connector (1) for driver air bag as follows.
    1. Release locking of lock slider (2).
    2. After unlocked, disconnect connector.
  6. Remove passenger side front pillar lower trim and disconnect yellow connector (3) for passenger air bag as follows.
    1. Release locking of lock slider (2).
    2. After unlocked, disconnect connector.

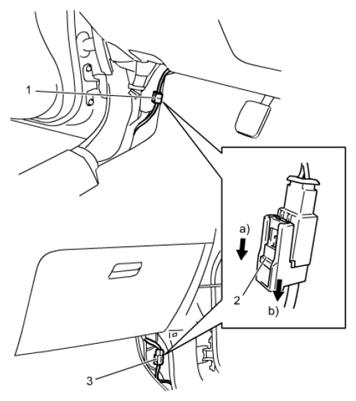

      Fig 1: Disconnecting Yellow Connector For Passenger Air Bag
      G06867780Courtesy of SUZUKI OF AMERICA CORP.
      NOTE: With "A/B" fuse removed and ignition switch ON, "AIR BAG" warning light will be ON. This is normal operation and does not indicate air bag system malfunction.
