Front Side-Air Bag (Inflator) Module Removal and Installation: Installation

Reference: Front Side-Air Bag (Inflator) Inspection : Advanced Air Bag

1. Install front side-air bag (inflator) module (1), then tighten nut to specified torque.

   Tightening torque

   Front side-air bag nut (a): 23 N.m (2.3 kgf-m, 17.0 lbf-ft)

2. Connect front side-air bag (inflator) module connector (2) securely as shown in figure.
   1. Connect connector.
   2. Lock connector with lock button (3).

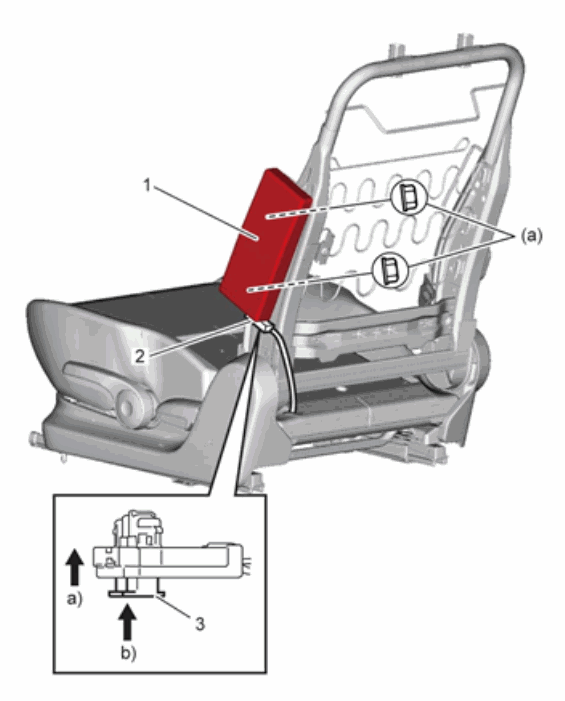

   Fig 1: Installing New Sleeve And Sleeve Lock Nut To Side-Air Bag (Inflator) Module
   Courtesy of SUZUKI OF AMERICA CORP.
3. Install seat back pad, seat back trim, seat back cover, head rest guide and head rest.
